Toshiba Satellite C55Dt-A5306 Fan Replacement

Geschrieben von: Nahrain Putris
  • Kommentare: 0
Toshiba Satellite C55Dt-A5306 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 - 20 Minuten

Einleitung

This guide will show users how to replace the fan.

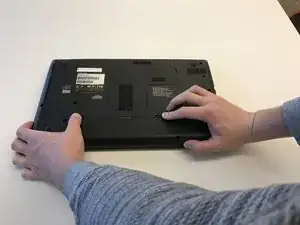

  1. VNyeYI3ANsVRtZXQ

    • Place fingers on the latches and slide outwards to unlock.

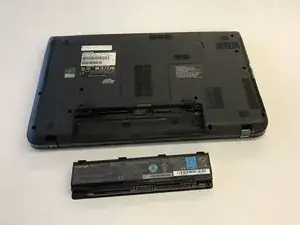

  2. XGOAEcjGlN4CrGgV

    • Remove battery.

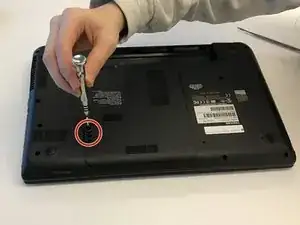

  3. 2TukxpMKXXSwkdHF

    • Using the Phillips Head #0 Screwdriver, remove one 3mm Phillips #0 screw as indicated.

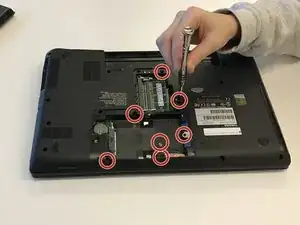

  4. BKoPXLS2ZKSJJUqS

    • Remove hard drive cover. Using the Phillips Head #0 Screwdriver, remove seven 3mm Phillips #0 screws as indicated.

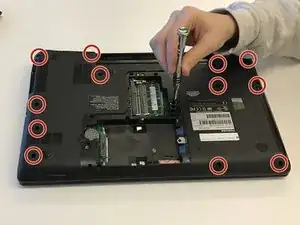

  5. iVmEFUTJVlblKaTf

    • Using the Phillips Head #0 Screwdriver, remove twelve 3mm Phillips #0 screw as indicated.

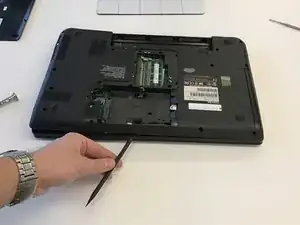

  6. pFjpeXXivtCC1WLZ
    pFjpeXXivtCC1WLZ

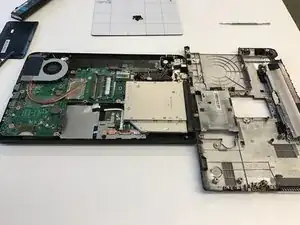

    pSugMrtC1DYSbuL4

    • Using the plastic spudger, pry the back off along the periphery of the laptop.

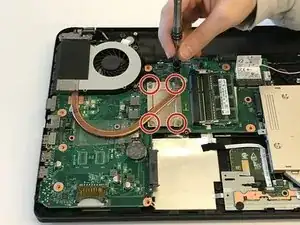

  7. tXkKRmojVhUXn2M2

    • Using the Phillips Head #0 Screwdriver, unscrew four 3mm Phillips #0 screws, on the silver plate under the copper tubing.

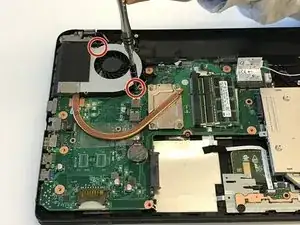

  8. FHIFWpdIeVDo4HIB

    • Using the Phillips Head #0 Screwdriver, remove two 1.5mm Phillips #0 screw holding the fan down.

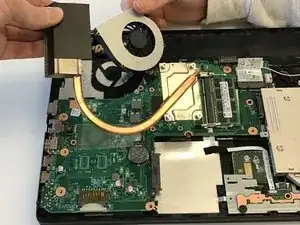

  9. JQyem2rWdt3QoV21

    • After unscrewing, remove the heatsink from the laptop.

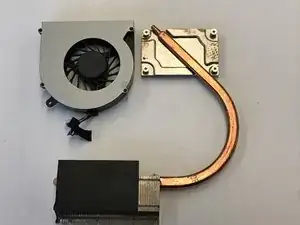

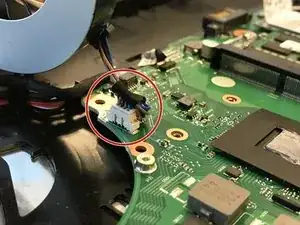

  10. y4OTfnXopnExLUbR
    y4OTfnXopnExLUbR
    iIB1naNS3ciRoXwZ

    • Unplug connected wire to remove the fan as indicated. Both the heatsink and fan should be removed before replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
