Toshiba Satellite C55Dt-A5306 CMOS Battery Replacement

Geschrieben von: Nahrain Putris
  • Kommentare: 0
Toshiba Satellite C55Dt-A5306 CMOS Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show users how to replace the CMOS battery.

  1. VNyeYI3ANsVRtZXQ

    • Place fingers on the latches and slide outwards to unlock.

  2. XGOAEcjGlN4CrGgV

    • Remove battery.

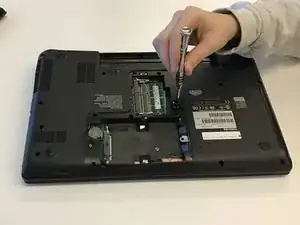

  3. A5gQWk4J2kqQ144J

    • Using the Phillips Head #0 Screwdriver, remove one 3mm Phillips #0 screw as indicated.

  4. XGrsOiHtEMYLdAD2

    • Remove hard drive cover.

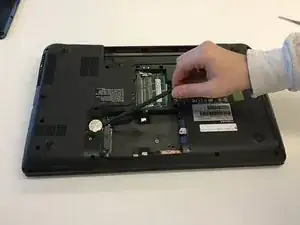

  5. XYjmGrV1VY1GuNOw

    • Using the plastic spudger, remove the CMOS battery, which had the letters DBV on it.

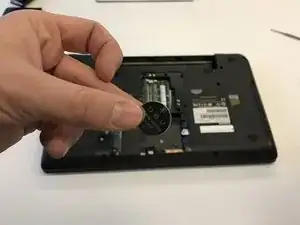

  6. P36OtVeCgcb2nUll

    • Replace CMOS battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
