Toshiba Satellite C55Dt-A5306 DC Power Jack Replacement

Geschrieben von: Patrick Kroenung
  • Kommentare: 1
Toshiba Satellite C55Dt-A5306 DC Power Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will aid in replacing a faulty DC power jack. A faulty power jack will prevent the laptop from conducting a charge.

  1. 2TukxpMKXXSwkdHF

    • Using the Phillips Head #0 Screwdriver, remove one 3mm Phillips #0 screw as indicated.

  2. BKoPXLS2ZKSJJUqS

    • Remove hard drive cover. Using the Phillips Head #0 Screwdriver, remove seven 3mm Phillips #0 screws as indicated.

  3. iVmEFUTJVlblKaTf

    • Using the Phillips Head #0 Screwdriver, remove twelve 3mm Phillips #0 screw as indicated.

  4. pFjpeXXivtCC1WLZ
    pFjpeXXivtCC1WLZ
    pSugMrtC1DYSbuL4

    • Using the plastic spudger, pry the back off along the periphery of the laptop.

  5. yPa1OU3MdnKlMyLL
    yPa1OU3MdnKlMyLL
    YdsZFMZcyIrwWynb

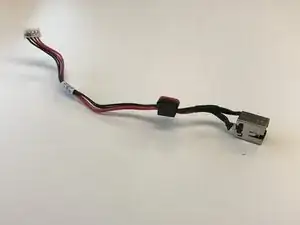

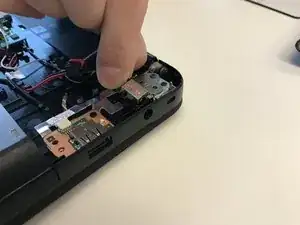

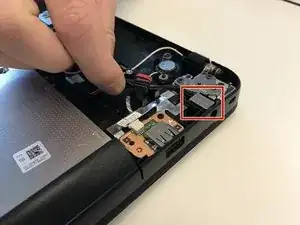

    • Remove the DC power jack from its plastic retaining piece, just inside of the charger inlet.

  6. owb1KuYOOtZcLWQI
    owb1KuYOOtZcLWQI
    KkDTwDA6OnKhYJqO

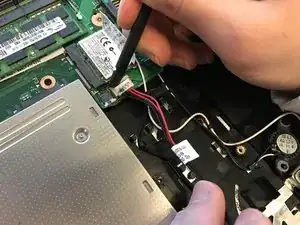

    • Use the nylon spudger to remove the connecting wires from the motherboard. Insert the spudger between the terminal plastic piece of the wire and its retaining clip on the mother board. The wire should release without much force.

Abschluss

To reassemble your device, follow these instructions in reverse order.
