Toshiba Satellite C55Dt-A5306 Disc Drive Replacement

Geschrieben von: zeena qiryaqoz
  • Kommentare: 1
Toshiba Satellite C55Dt-A5306 Disc Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 25 Minuten

Einleitung

This guide will show users how to replace the Toshiba Satellite C55Dt-A5306 disc drive.

  1. VNyeYI3ANsVRtZXQ

    • Place fingers on the latches and slide outwards to unlock.

  2. XGOAEcjGlN4CrGgV

    • Remove battery.

  3. 2TukxpMKXXSwkdHF

    • Using the Phillips Head #0 Screwdriver, remove one 3mm Phillips #0 screw as indicated.

  4. BKoPXLS2ZKSJJUqS

    • Remove hard drive cover. Using the Phillips Head #0 Screwdriver, remove seven 3mm Phillips #0 screws as indicated.

  5. iVmEFUTJVlblKaTf

    • Using the Phillips Head #0 Screwdriver, remove twelve 3mm Phillips #0 screw as indicated.

  6. pFjpeXXivtCC1WLZ
    pFjpeXXivtCC1WLZ
    pSugMrtC1DYSbuL4

    • Using the plastic spudger, pry the back off along the periphery of the laptop.

  7. kmUcRdc4pQGZdqpZ
    kmUcRdc4pQGZdqpZ
    lpQpNluwDIpSxHSZ

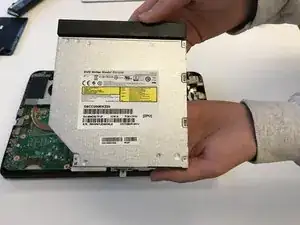

    • Slide the disc drive to the left. It should come off with ease.

Abschluss

To reassemble your device, follow these instructions in reverse order.
