Toshiba Satellite C55Dt-A5306 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to replace the keyboard on your Toshiba Satellite C55Dt-A5306.

Werkzeuge

  1. VNyeYI3ANsVRtZXQ

    • Place fingers on the latches and slide outwards to unlock.

  2. XGOAEcjGlN4CrGgV

    • Remove battery.

  3. Tle6djCuhyDBUJn3
    Tle6djCuhyDBUJn3

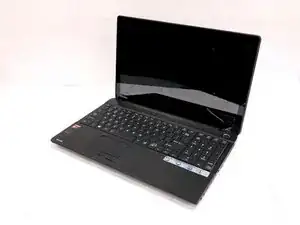

    em4sbP5CPpwP5jY4

    • After removing the battery, open up your device so that the keyboard is facing you.

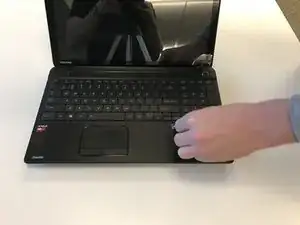

  4. 5cLcrYUbQC32tjQk
    5cLcrYUbQC32tjQk

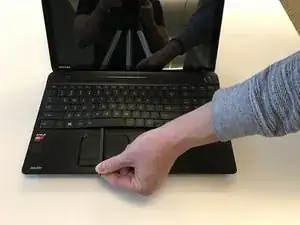

    TSxnbKCtSZlgrOSb

    • Using the spudger, go around the periphery of the keyboard while gently lifting out the keyboard little by little.

  5. CUwYTXVTQyXDalfA

    • Lift the old keyboard out of the way.

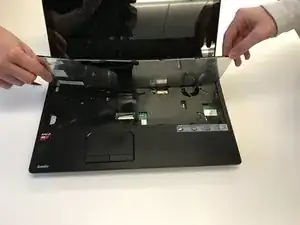

  6. IaJq1OLIAWb6IeES
    IaJq1OLIAWb6IeES

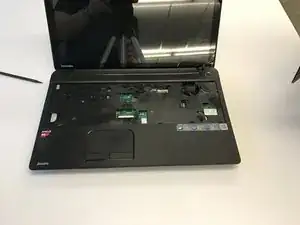

    JjrfW2mxl4HQsWPX

    • Before pulling out the keyboard, notice that it is connected to the motherboard via a ribbon cable. Gently press out the ribbon cable from its connection site and put the old keyboard aside.

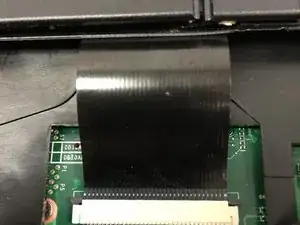

  7. D5ZXSTK2YNkP2IUh

    • Locate the keyboard ribbon cable, and the cable retainer keeping it attached to the motherboard.

  8. Ps4aF5isd53gUVpB

    • Use your nylon spudger to release the retainer by gently lifting the retaining clips on either side.

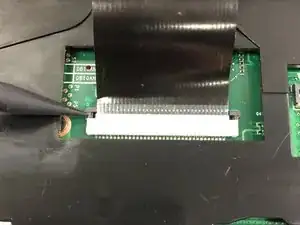

  9. Q3ktQKBDE2WWi1dm
    Q3ktQKBDE2WWi1dm

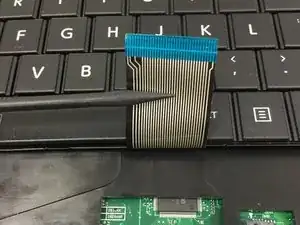

    6qA1A4BYiYV4qblf

    • Once both retaining clips have been lifted up, the ribbon cable should release with a gentle pull.

    • You can now remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
