Toshiba Satellite C655-S5142 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

3 - 5 Minuten

Einleitung

  1. ISuoBWAJ5ZjJrjKP
    ISuoBWAJ5ZjJrjKP
    psJ2yduxK5GGduDd
    Vg4m1CoEE2ojMgQe

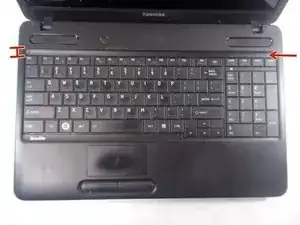

    • Unplug your computer, and make sure that it is shut off before starting

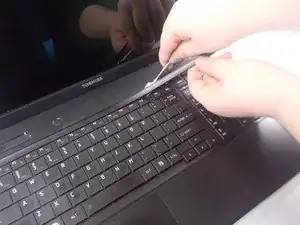

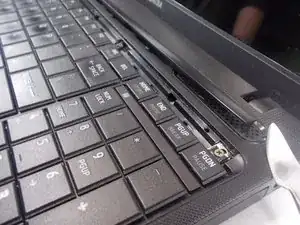

    • Using the metal spudger, gently insert it under the plastic covering slowly easing it up until the screws are revealed.

    • The plastic covering will make clicking sounds when being removed this is normal, you are not breaking it.

  2. HaHLBcgM6m4MBJPY
    HaHLBcgM6m4MBJPY
    JnbVCBHkHfN3jNIo

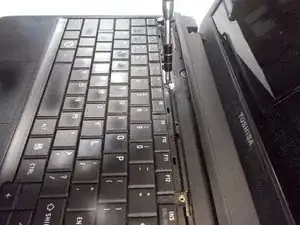

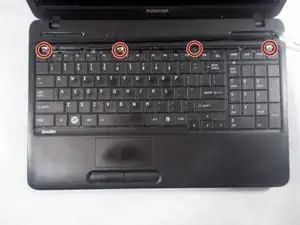

    • Using a phillips head screwdriver, unscrew each of the four screws.

  3. J5gYeVnmqsZHcdnC
    J5gYeVnmqsZHcdnC
    hKlFDtJShVadKn6H

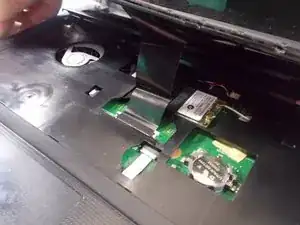

    • Gradually lift the keyboard up, it will reveal the connector cable.

    • Do not pull the keyboard away too hard, this may damage the connector.

  4. QYqpEeFGhQkH6EBB
    QYqpEeFGhQkH6EBB
    qF3trXrRv1LI2FZY

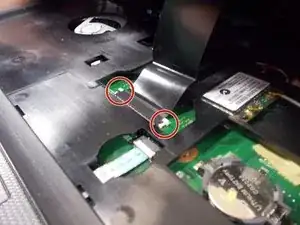

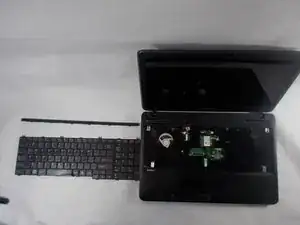

    • With the keyboard resting up, pull the tabs to disconnect the cable from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
