Typical Toshiba and no service manuals available. The LCD on this laptop was removed for other purposes. This is a straight forward task and only requires minimal tools.

  1. r3G3hiDvEJQ3RUUI
    r3G3hiDvEJQ3RUUI
    AAOouyBxbxgtLi1H
    U4FXyaFwmwdihSjP
    • Here is the Toshiba Satellite C655D-S5200

    • Open the laptop with the LCD facing forward. There are four rubber caps, one in each corner

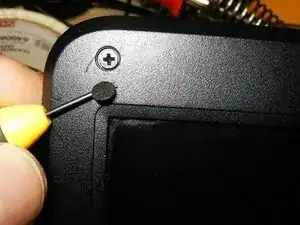

    • Removing the plugs reveal the Phillips screws

  2. hOgaJS4KKfOf1OUV
    hOgaJS4KKfOf1OUV
    X4mSWIgTCGO2IZts
    yxOZtvwOQWGB2BK2

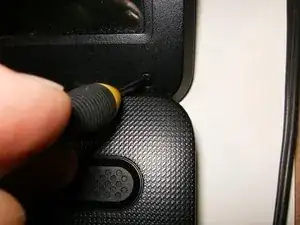

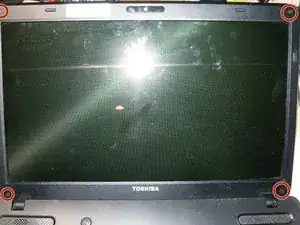

    • Remove all four screws, tow on top left and right corner

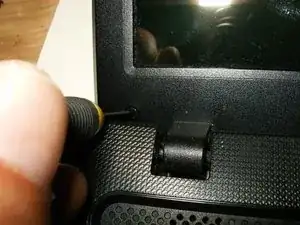

    • One on the bottom left corner

    • and the bottom right corner.

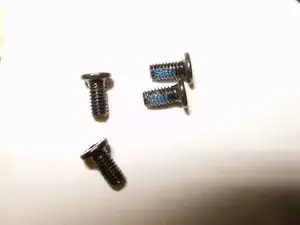

    • Here are the four M3x5mm screws

  3. 1x5SRvGcQfIw1drD
    1x5SRvGcQfIw1drD
    rqNRxguFeeERXZjF
    jqfUJRjlPcRbV3iK

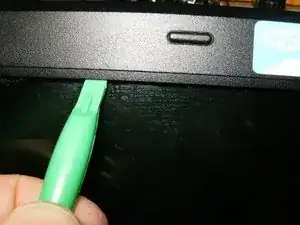

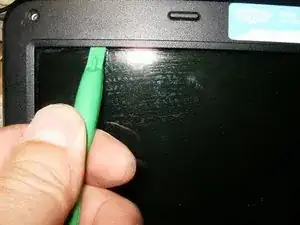

    • Use a plastic opening tool, or similar to pop the bezel of the LCD assembly

    • Continue to slide the tool all the way across the top

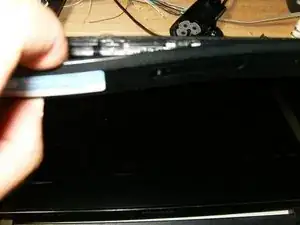

    • Once the bezel has been released from the tabs, it can be further released be applying some gently manual pulling

  4. wrftJZinYZUaOSyI
    wrftJZinYZUaOSyI
    mW6RrZJlddsNmMFJ
    d2aFMuacKwPUMsGp

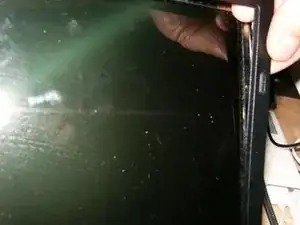

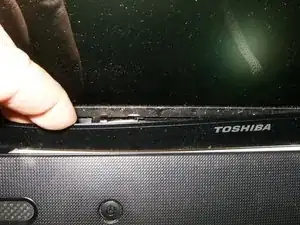

    • Continue to pull gently on the sides

    • and finally on the bottom.

    • With all the tabs released the bezel can now be removed.

  5. OXFgUrsXEosSW4eT
    OXFgUrsXEosSW4eT
    acsIZLixvCHFcvhn
    Ghnw5rvd1PVfpUbc

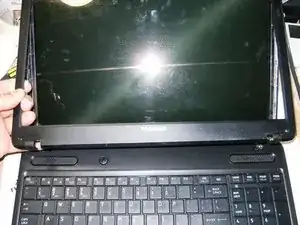

    • Here is the LCD assembly without the bezel

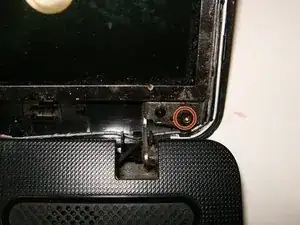

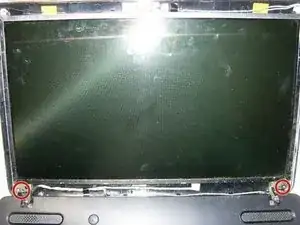

    • Remove the Phillips screw that connects the LCD frame to the back cover. This is the left one

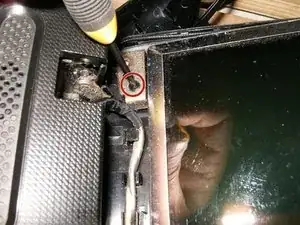

    • Remove the right one as well

  6. VSlCvDsWDjFK2D1p
    VSlCvDsWDjFK2D1p
    3KBmmNeQcY45ciWF
    cAQfmwXTCbdsYoqB
    • The LCD can now be moved forward and away from the rear cover

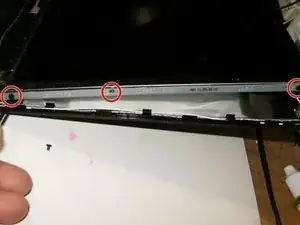

    • There are three screws on either side that hold the panel to the frame. Remove those

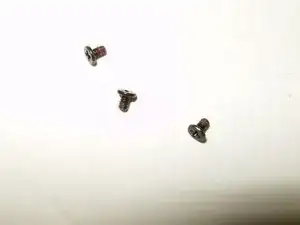

    • Here are the three M2x4 screws

  7. fLPpLyyFFoomLHsH
    fLPpLyyFFoomLHsH
    GDh4Mo1cXLeFSwmu
    cMjyNyUiYa1DAFdQ

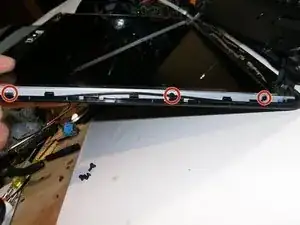

    • Remove the three Phillips screws on the right side as well.

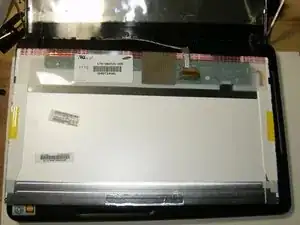

    • with the screws removed the panel can now be moved out of the LCD frame. The LCD is still connected by the display cable.

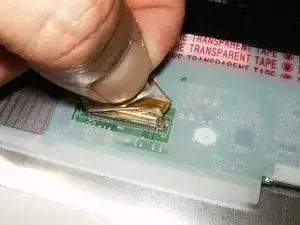

    • The display cable is secured to the connector with some clear adhesive. Remove this frist

  8. YF3pO2BOcCPUILSr
    YF3pO2BOcCPUILSr
    C6UE1EFOcI1g3pBv

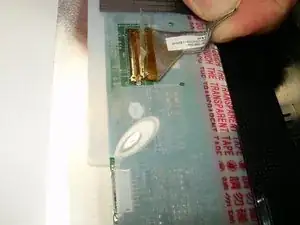

    • Remove the display cable carefully.

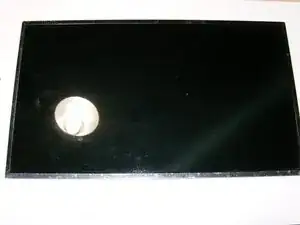

    • With the display cable disconnected, the LCD can now be removed and replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
