This guide teaches you how to replace the motherboard in a Toshiba Satellite C655 series laptop.

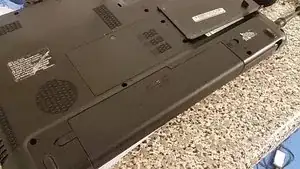

  1. With the battery side facing you, first move the right locking latch to the right.
    • With the battery side facing you, first move the right locking latch to the right.

    • Afterwards, move the left spring latch to the left, but keep your finger there, and pull the battery out with your other hand.

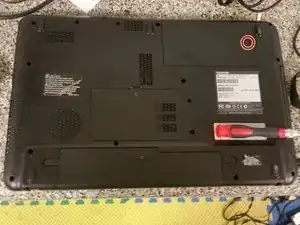

  2. MKYE2KYsD1ED1BQG
    • Remove the single screw securing the hard drive cover to the base.

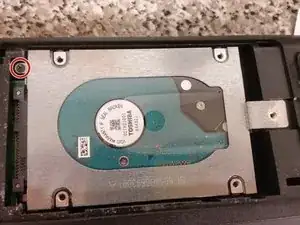

  3. OK1hUianYKqQnTQN
    • Remove the single screw securing the hard drive caddy to the base.

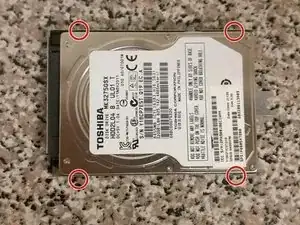

  4. Zlh3x2cGCSOTqyFB
    • This step is unnecessary if you're just removing the hard drive for testing purposes, or to replace the motherboard.

    • Remove the four screws securing the hard drive to the caddy.

    • You're done!

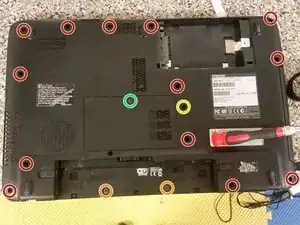

  5. nw1iMAORAi1vKVfF
    • Remove the twelve "F6"/M2.5x6 screws.

    • Remove the two "F2" screws under where the battery was.

    • Remove the "F3" screw securing the optical drive, and slide the optical drive out.

    • Remove the two "F2" screws from where the optical drive faceplate was.

    • Remove the memory cover screw, pull the memory door open, and remove the two "F6"/M2.5x6 screws from underneath.

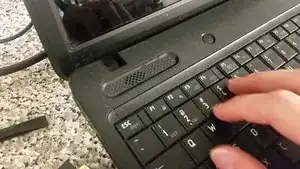

  6. Use your fingernail or a spudget to get under the keyboard trim, and pry it up. Go along the keyboard trim, pulling it up.
    • Use your fingernail or a spudget to get under the keyboard trim, and pry it up. Go along the keyboard trim, pulling it up.

  7. kKKL2jeFbdnRaehy
    kKKL2jeFbdnRaehy
    wtSQ3C22uAPhDlfE

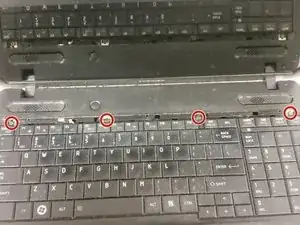

    • Remove the four screws securing the keyboard to the palmrest.

    • Lift the keyboard at the top a little, and pull the keyboard towards the screen, so that you see the locking connector below the keyboard.

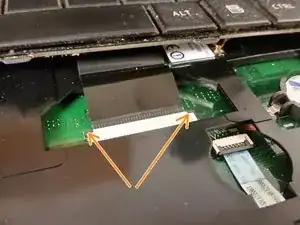

    • Push the locking connector's lock towards the screen at both the left and the right points, very gently.

    • Pull the now-loose keyboard cable out of the connector.

  8. t2p1QdM33CXxicwV
    • Remove the three palmrest cables from the motherboard, that being the power button cable, the speaker cable, and the touchpad cable.

    • No need to remove any of the other cables yet.

    • Use a spudger to separate the palmrest from the base.

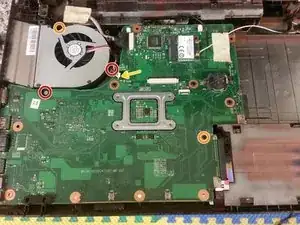

  9. uWNPxSOlgXpLdFN4
    • Remove the fan cable.

    • Remove the two silver-colored fan screws.

    • Remove the single black-colored fan screw.

  10. mx1fUAfULqZqxKLq

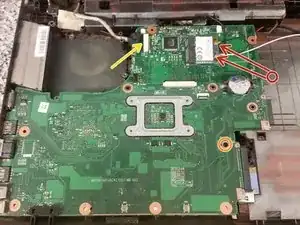

    • Remove the single screw securing the motherboard to the base.

    • Remove the two wireless antenna connectors.

    • Remove the LCD cable.

    • Lift the motherboard out of the base.

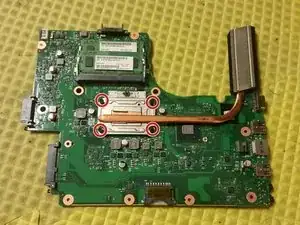

  11. SiMdr6mZg6qmaYCr
    • Remove the four screws securing the heatsink to the motherboard.

    • Remove the processor, memory, and optionally, the clock battery. Install the first two in the replacement motherboard. You're done!

Abschluss

To reassemble your device, follow these instructions in reverse order.
