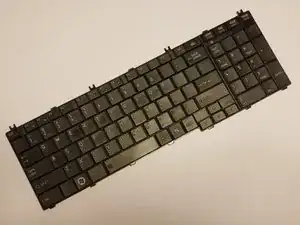

If your keyboard module is malfunctioning, you'll need to replace it. You’ll need a PH0 screwdriver and a rigid pry tool. The process itself is easy, just pay special attention when gently opening the ZIF connector.
Werkzeuge
-
-
Flip the laptop over, so that the "top" of the laptop is against your working surface.
-
Orient the laptop so that the silver label is in the bottom-left corner, with the battery facing you.
-
-
-
On the right side of the battery, move the tab marked 1 to the right, unlocking the battery.
-
On the left side of the battery, hold the tab marked 2 to the left while pulling the battery towards you.
-
-
-
Starting at the right, pry up part of the plastic bar by using a spudger between the F12 and Insert key.
-
Pull up on the rest of the plastic bar to remove it.
-
-
-
Once screws are removed, lift the keyboard closest to the screen and gently flip it over.
-
Using the spudger, lift up the white ZIF connector to unlatch the ribbon cable, and gently remove the cable.
-
To reassemble your device, follow these instructions in reverse order.
