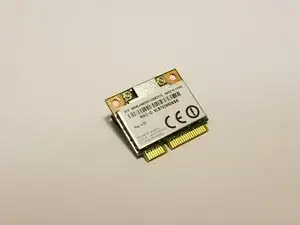

Sometimes a faulty wireless card causes network connection issues, and replacing the card should alleviate them. You’ll need to remove the keyboard as a prerequisite, requiring a PH0-head screwdriver, a rigid pry-tool, and some gentle care needed when opening the ZIF connector. The rest of the process is fairly simple.
Werkzeuge
-
-

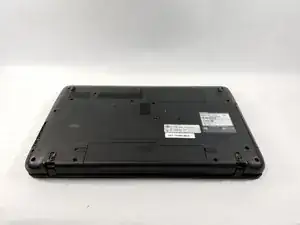

Flip the laptop over, so that the "top" of the laptop is against your working surface.
-
Orient the laptop so that the silver label is in the bottom-left corner, with the battery facing you.
-
-
-
On the right side of the battery, move the tab marked 1 to the right, unlocking the battery.
-
On the left side of the battery, hold the tab marked 2 to the left while pulling the battery towards you.
-
-
-

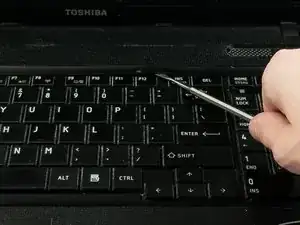

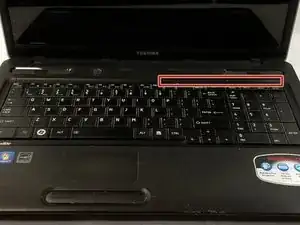

Starting at the right, pry up part of the plastic bar by using a spudger between the F12 and Insert key.
-

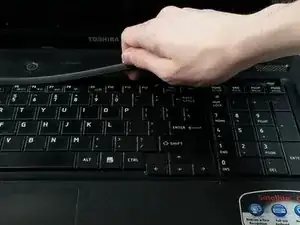

Pull up on the rest of the plastic bar to remove it.
-
-
-

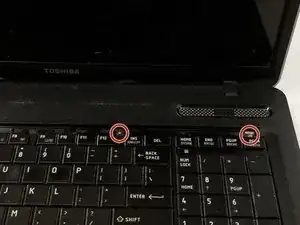

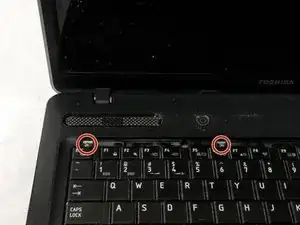

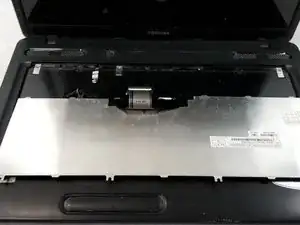

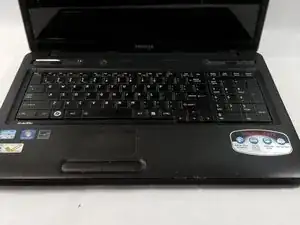

Once screws are removed, lift the keyboard closest to the screen and gently flip it over.
-

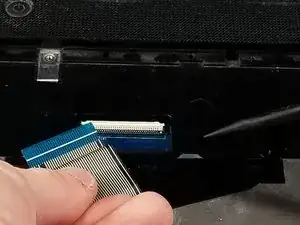

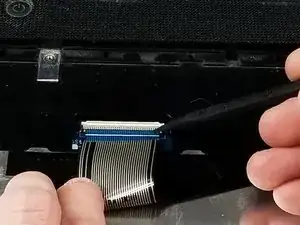

Using the spudger, lift up the white ZIF connector to unlatch the ribbon cable, and gently remove the cable.
-
-
-

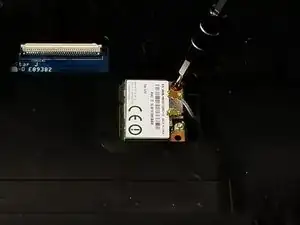

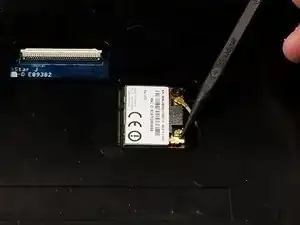

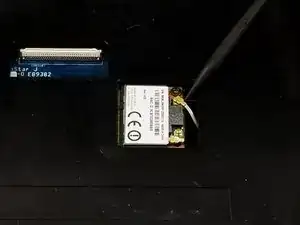

Underneath the keyboard, gently disconnect the black and white wires on the right of the wireless adapter using a thin plastic spudger.
-
-
-

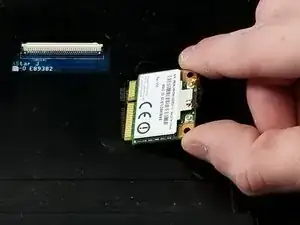

Unscrew the one 3mm screw in the top-left corner of the wireless adapter using a PH0 screwdriver.
-
To reassemble your device, follow these instructions in reverse order.
