Toshiba Satellite C850 Keyboard Replacement

Geschrieben von: ZFix
  • Kommentare: 4
Toshiba Satellite C850 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

How to replace the Keyboard on Toshiba Satellite, series 850.

The video manual is for cleaning the cooling system, but you can follow it, because at the beginning you can see how to disassemble the keyboard.


Please SUBSCRIBE to my channel ツ

  1. ghaPXDTKLVDkrD2N
    ghaPXDTKLVDkrD2N
    WhJqWmCwwKwx1AaE

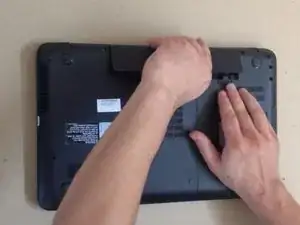

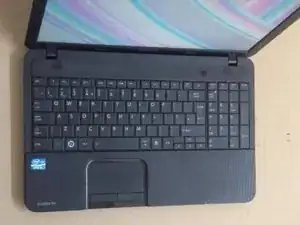

    • Switch-off the laptop and remove the battery.

  2. 13TduefLIqdwERQ1
    13TduefLIqdwERQ1
    JTxjreYBDTEutS1a
    6MPItUhxoscfTNuK

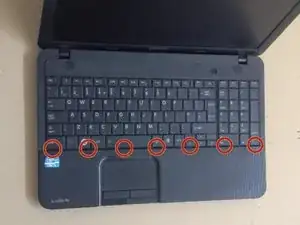

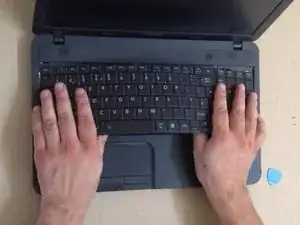

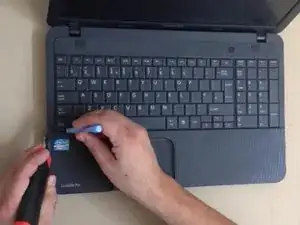

    • The Keyboard is held by 7x locking clips. Use cutter and plastic tools to unlock them.

    I was disassembling a c-850 laptop but it was obvious that the kb is firmly fixed! Finally i found there are four screws on the top part of kb, hidden under a plastic strip . I’d add a photo…but no “attach” button here

    asaf c -

  3. ZDSbVoUbdc24nEOW
    ZDSbVoUbdc24nEOW
    mM3WGHSgBAyYORwG

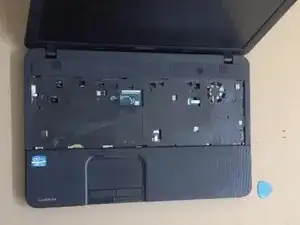

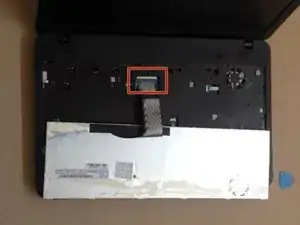

    • Disconnect the old Keyboard and you are ready to install the new one.

    • To remove or re-insert the keyboard ribbon, simply flip the locking clip upwards to unlock and downwards to lock the ribbon. Alternatively, you may pull it outwards with a fingernail.

    • .

    • Please SUBSCRIBE to my channel ツ

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

3 Kommentare

Thanks A lot

MUSHTAQ AHMAD -

Where does the 4-pin ribbon cable for a backlit keyboard connect?

thomja1 -

I want new keyboard, where can i get that ?

Eswara Prasad -
