Toshiba Satellite C850 Thermal Paste Replacement

Geschrieben von: ZFix
  • Kommentare: 0
Toshiba Satellite C850 Thermal Paste Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

How to apply thermal compound, paste, grease on the main CPU.


  1. PCcEahD5CIAHOUgG
    PCcEahD5CIAHOUgG
    WYHtXKUkQAqUpYK4

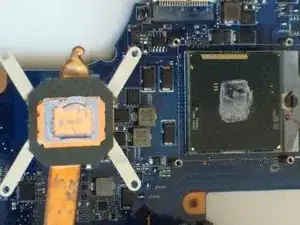

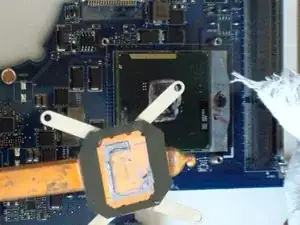

    • Use a lint-free cloth to clean the old thermal compound.

    • If the thermal compound is solidified, you can use a flat end of any plastic tool to scrape it off

    • Use again cloth with isopropyl alcohol to clean the Thermal surface.

  2. jTJsxqR1pbJlTFbo
    jTJsxqR1pbJlTFbo
    n1PvEDLyNyQ5kY3J
    iQSujeVSITHln2VF

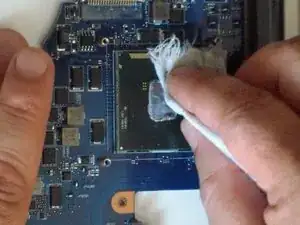

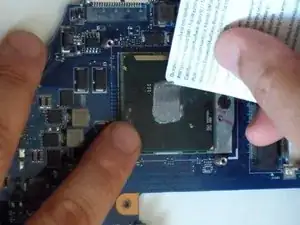

    • Use the same technic to clean the surface of the processor from the old thermal compound.

    • Be carefully,if you don't want to break the CPU.

  3. AyrLnYLETlqybRfU
    AyrLnYLETlqybRfU
    QN3W1CSMhJKSXGmg
    upkuHUi3gUBdpWTZ

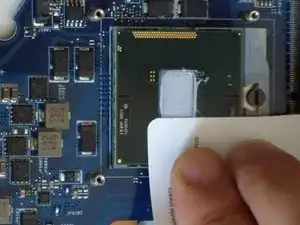

    • Dispense a small amount of thermal compound.

    • Using a plastic finger protector, glove or a plastic bag on your finger and spread the paste evenly across the surface.

    • Another way to spread the compound is by using a plastic card.

  4. UdAitJ1suYWRc4IE
    UdAitJ1suYWRc4IE
    oIwEOjKgDV1PGB4B

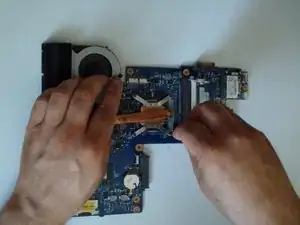

    • That's all.

    • .

    • .

    • .

    • .

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
