Toshiba Satellite C855-S5115 Cooling Fan Replacement

Geschrieben von: Claire Fletcher
  • Kommentare: 0
Toshiba Satellite C855-S5115 Cooling Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

20 Minuten

Einleitung

Keeping your laptop cool is important to the speed and functionality of the device. This guide will show you how to replace your Toshiba's cooling fans.

  1. 64JjdwAPOY6SImBY
    64JjdwAPOY6SImBY
    OFfCVOUPwlXj1LPN

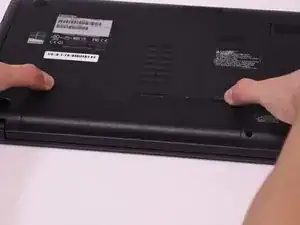

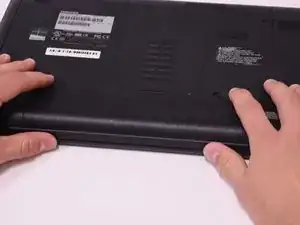

    • Use two fingers to pull the ridged lock tabs on the bottom of the computer toward the edges. This will unlock the battery.

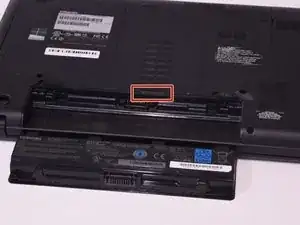

  2. sTWHXNMiTsMfKEPp

    • Holding the left tab in place, use the groove located between the two tabs to pry the battery up and out.

  3. bbZONyAVEZs2KrCL
    bbZONyAVEZs2KrCL
    rIZJZPdmI11WasFj

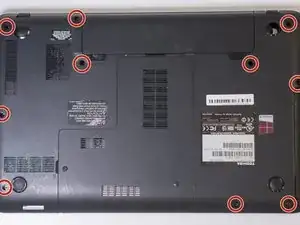

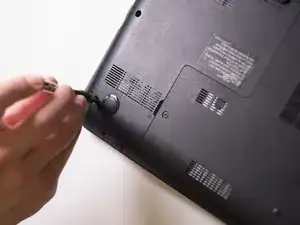

    • Remove the ten 7mm Phillips screws located on the bottom of the laptop using the Phillips #1 screwdriver.

  4. tDojjBpdGVGVFLjx
    tDojjBpdGVGVFLjx
    nCR5yruRDQOYaaVI

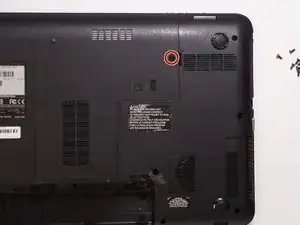

    • Remove the 7mm Phillips screw located on the easy access panel on the bottom of the laptop using a Phillips #1 screwdriver.

  5. onHmbD2T4PJIMrRm
    onHmbD2T4PJIMrRm
    ECxBSNfF4SfA3c54
    QRcNnTIh2pBLRxha

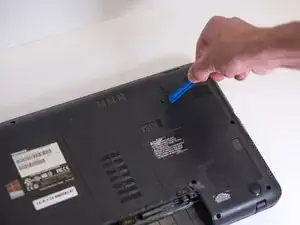

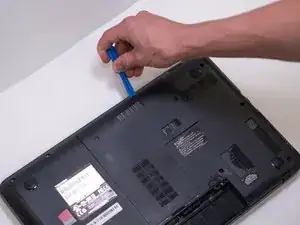

    • Insert a plastic opening tool and follow the edges to open the panel.

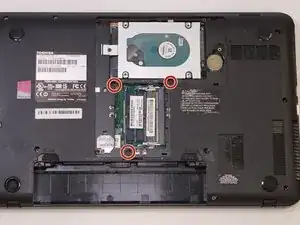

  6. VLALupEYjwnHSNZZ

    • Remove the three 3.5mm Phillips #1 screws indicated in the picture.

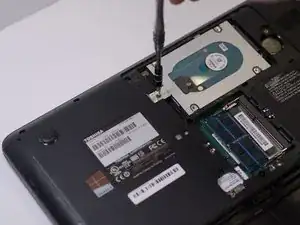

  7. qkvNadFmUIZeTQNG
    qkvNadFmUIZeTQNG
    fILvlbVsAj1Z5jLH
    hmSVF3YqXXZnBrhW

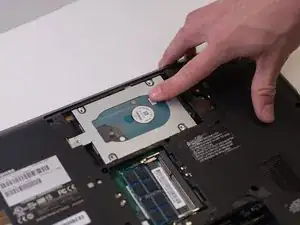

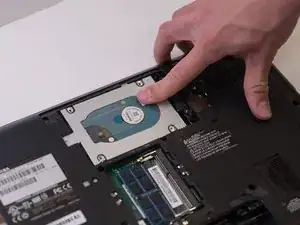

    • Remove the 3mm Phillips #1 screw holding the HDD in place, then slide the HDD towards the sticker.

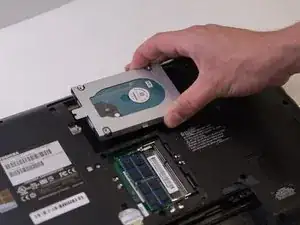

  8. gmIwcvUMyKLhMHbe

    • Pull the HDD out.

  9. plP3OFiICxfWoGIX

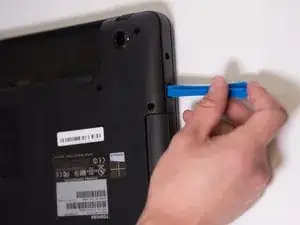

    • Insert a plastic opening tool in between the panel and the main assembly.

  10. wjVXTmJddAvV6v4Y

    • Work your way around the laptop to remove the base plate.

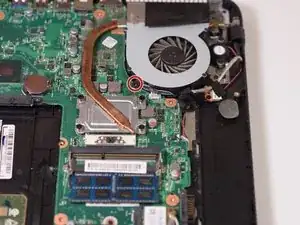

  11. XwZEgUbO25stEVPF

    • Remove the single 1.5mm Phillips #1 screw located next to the cooling fan.

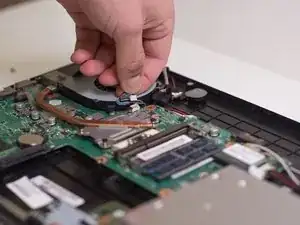

  12. FnSSkuaxOWiajUUt

    • Gently pull out the two pin connector.

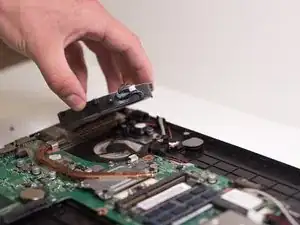

  13. FMJnwIZAlljOMAMg

    • Remove the CPU fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
