Toshiba Satellite C855D-S5109 Motherboard Replacement

Geschrieben von: Ernest Armstrong
  • Kommentare: 0
Toshiba Satellite C855D-S5109 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

1 Stunde

Einleitung

Motherboards can get damaged or worn out for a variety of reasons, including physical damage, exposure to water, age, or even bad quality. This guide will show, step by step, how to remove the motherboard from a Toshiba Satellite C855D-S5109 laptop in order to replace it.

Motherboard failure will almost always result in a catastrophic failure of the laptop, so if your laptop completely refuses to turn on and you’ve already checked the battery, replacing the motherboard may restore functionality to your machine.

  1. DxAtMOsTEGP161Xb
    DxAtMOsTEGP161Xb
    ys32hvRCqDPdsQX5

    • Flip the laptop over so the bottom is facing up.

  2. wVAkkZ25N2vlGRLA
    wVAkkZ25N2vlGRLA
    UCVJi2PHWcwamSVx

    • Slide the two lock tabs on the battery to the open position.

  3. paDGIeoYO4LG6Bdh
    paDGIeoYO4LG6Bdh
    E4fEEntqQuFLyHCG
    UV6xqhCwDhTJSdbN

    • While still holding the lock tabs outward, use your hand to grab the top of battery and pull up.

    • Remove the battery.

  4. aZDqmSvEmOCUTLX3
    aZDqmSvEmOCUTLX3
    bHZZXop43HEs2sWU

    • Using a Jimmy, slowly lift the keyboard up and away from the palm-rest. Slowly work around the edges, pushing the clips back, prying the keyboard up with minimal force.

    • Be sure to place the tool under the keyboard not the keys themselves!

    • Patience is key on this step; it might take a while, but don't force anything or you'll risk breaking a clip.

  5. fZ3WWVkcipxQOlnw
    fZ3WWVkcipxQOlnw
    gMybJX3GrrGOjyha
    OPPIjnNgOFAWLbcM

    • Flip up the locking flap of the ZIF connector holding the keyboard cable on the motherboard.

    • Pull the keyboard ribbon cable out from the connector on the motherboard.

    • The ribbon should detach from the palm-rest not the underside of the keyboard.

    • Remove the keyboard from the laptop.

    • While replacing the keyboard, you will not need the Jimmy. Just gently press down around the edges of the new keyboard after plugging the ribbon cable in. You will hear it click back into place as the clips engage.

  6. Cq6iFVGrWoKeb4Yb
    Cq6iFVGrWoKeb4Yb
    NfSo4JdtnSvSRlcE

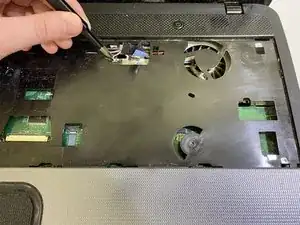

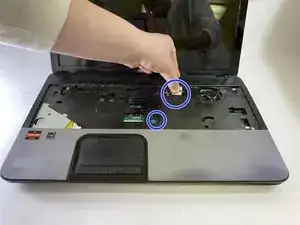

    • In the area under the keyboard, disconnect the first cable that is located inside of the square near the front right of the laptop.

    • Disconnect the next two cables that are located inside of the square located at the back right of the laptop.

  7. SAtOTcBDAdcN4wnJ
    SAtOTcBDAdcN4wnJ
    Tcxa22IRlBMXakCR
    PlW4QfK2efAYGTyY

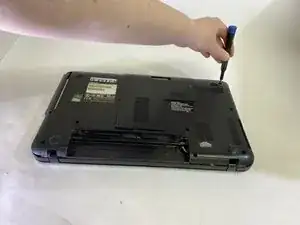

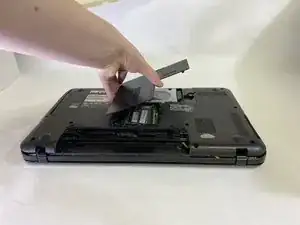

    • Flip the laptop over and locate all of the underside screws.

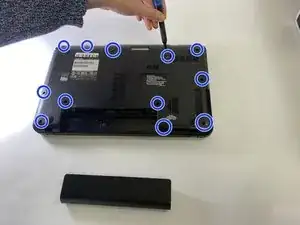

    • Remove the ten 6mm Phillips #00 screws around the outside of the bottom panel.

    • Remove the two 6mm Phillips #00 screws in the panel that cover the hard drive.

    • Remove the panel that covers the hard drive.

  8. j4Sc63auRtG3Dsje
    j4Sc63auRtG3Dsje
    njL1dOPbK2ivDGHe

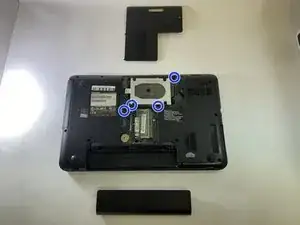

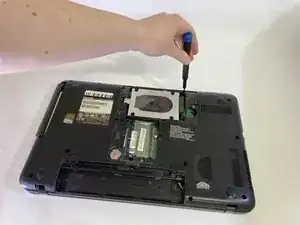

    • Remove the four 6mm Phillips #00 screws scattered around the hard drive.

  9. MnuZ5dRlUVkNe5SW
    MnuZ5dRlUVkNe5SW
    X3UWA4dAZoYLEZ4b
    BK6LatqU4poHtFnw

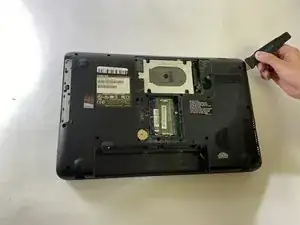

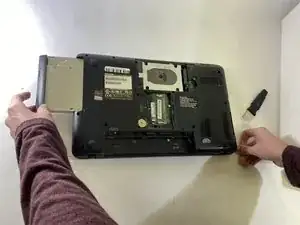

    • Remove the DVD RW Drive by sliding it out.

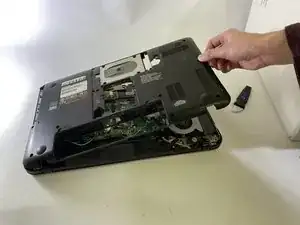

    • Pull the back panel of the laptop off, exposing the motherboard and other inside components.

  10. KT1JrifvdTyJMgR3
    KT1JrifvdTyJMgR3
    AT4gCYKRJHPBuLUJ

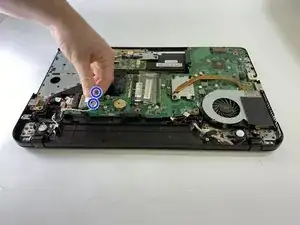

    • Remove the two screws holding down the wifi card

    • Pull and disconnect the wifi card from the motherboard

  11. v1wCagdooE3xskcu
    v1wCagdooE3xskcu
    eIIbhVfNYG1ZES6M

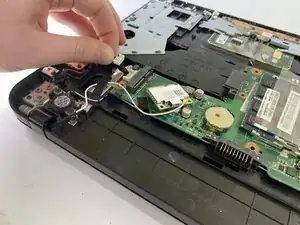

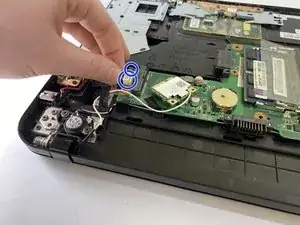

    • Disconnect the two cables for the DC power socket jack and the side usb board ribbon.

  12. VZewkidj5OqJbNJU
    VZewkidj5OqJbNJU
    JeQYBMnNVu5RBIKw
    YBVyunJBScISRJrQ

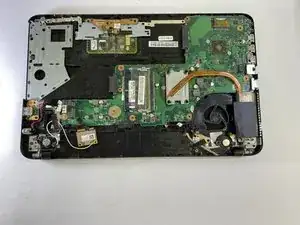

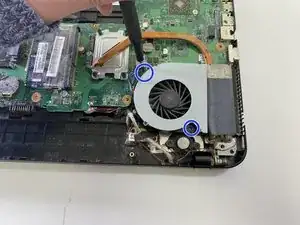

    • Remove the two 3mm Phillips #00 screws that are holding the cooling fan down.

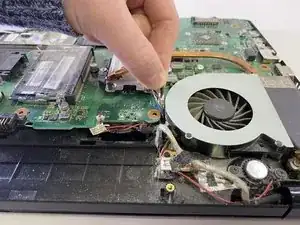

    • Unplug the wire that is holding the cooling fan to the motherboard.

    • Pull the cooling fan out.

  13. ylGFO6aVvDRgMkWr
    ylGFO6aVvDRgMkWr
    EL2jjpEfXThhTAiL
    mZxmbdHVeEEsQMH2

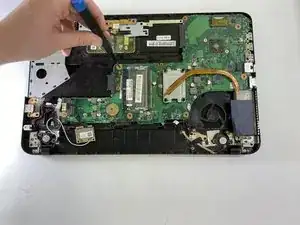

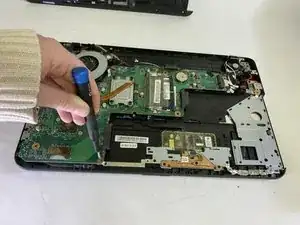

    • Remove the nine 6mm Phillips #00 screws around the motherboard that are located inside of the yellow circles.

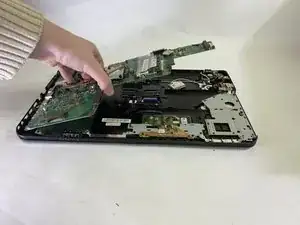

    • Pull the motherboard out of the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
