Toshiba Satellite C855D-S5109 RAM Replacement

Geschrieben von: Kaia Herrera
  • Kommentare: 0
Toshiba Satellite C855D-S5109 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

RAM is short for “random access memory”. It is a fundamental element for the computer that stores temporary data for the computer. Computers may run slower with malfunctioning or outdated RAM. If your computer is running slow, you experience frequent crashes, or your computer has trouble during startup, use this guide to replace or upgrade the RAM chips on your Toshiba Satellite C855D-S5109.

  1. DxAtMOsTEGP161Xb
    DxAtMOsTEGP161Xb
    ys32hvRCqDPdsQX5

    • Flip the laptop over so the bottom is facing up.

  2. wVAkkZ25N2vlGRLA
    wVAkkZ25N2vlGRLA
    UCVJi2PHWcwamSVx

    • Slide the two lock tabs on the battery to the open position.

  3. paDGIeoYO4LG6Bdh
    paDGIeoYO4LG6Bdh
    E4fEEntqQuFLyHCG
    UV6xqhCwDhTJSdbN

    • While still holding the lock tabs outward, use your hand to grab the top of battery and pull up.

    • Remove the battery.

  4. 3TmTFeYDAukyCABX

    • Flip the laptop around so that the bottom is facing you.

  5. tX1eYy1CAg3PdgrA

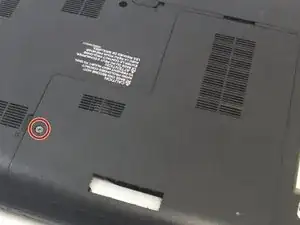

    • Unscrew the Phillips #00 screw, and remove the back cover.

  6. aVTrdOfhwSRS2Ce2

    • Spread the metal clamps on either side of the RAM card outward so the RAM pops up.

  7. SeqoyUCmUXi3PmBX

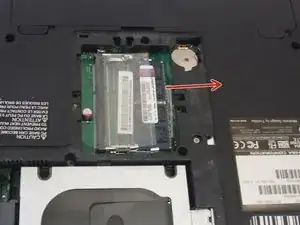

    • Pull the RAM out of the slot in a horizontal direction.

    • Be sure to only handle the edges of the RAM card, as the oils on your fingers can cause damage if they make contact with the face of the card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
