Einleitung

  1. YUTpKHQinSBydZcZ
    • Flip the laptop over so the bottom of the device is facing upward.

  2. LsUysYOMK5qMZj4N
    • Unscrew the 10 5mm Phillips screws, located on the bottom side of the notebook using the PH1 bit and the Magnetic Driver.

  3. AgGBSqwrQUGEPZMh
    • Pry open the bottom cover of the notebook with the plastic spudger tools. Slide a thin tool along the edges without ports to pop open the latches.

    • Be careful not to bend or crack the plastic back cover.

  4. AaGBIDuvTPkqVUuL
    • Remove the 1" yellow tape on top of the battery. This piece of tape is holding down the battery connection cable.

  5. XLMOgYwX3mQxNbPU
    • Lightly grip the battery on the two longest sides. Gently pull up until the adhesive on the notebook is separated from the battery.

  6. lUc2EGGv63OCiNQC
    • Carefully unplug the battery from the device motherboard.

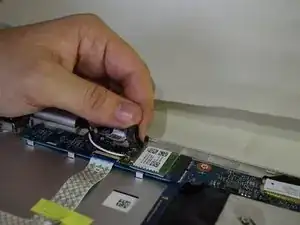

  7. XqcO4PDNGaUVfXSy
    XqcO4PDNGaUVfXSy

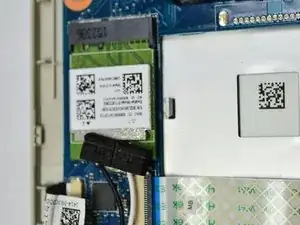

    Par2rKY1RUq16UkM
    • Peel off the black antenna stuck to the card.

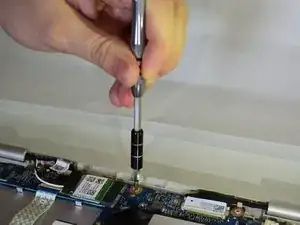

  8. HCOKRvtC5phmkaKN
    HCOKRvtC5phmkaKN

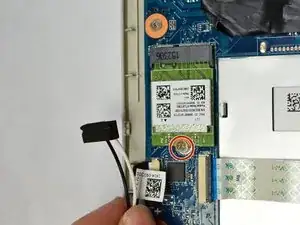

    WJIBUufSgJ2HOTXg
    • Carefully use the PH1 screw head to unscrew the one 3mm screw on the network card found near the hinge at the top.

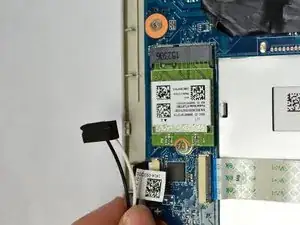

  9. KAWX3kD4bVONrpT5
    • Remove the network card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
