Einleitung
The tablet battery is located inside the tablet itself and will require a Phillips head screwdriver, prying tool, and tweezers. Also, there are a few wires and screws that need to be removed that require patience and a steady hand.
Ersatzteile
-
-

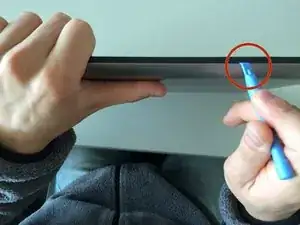

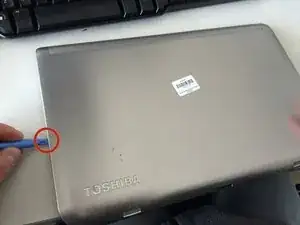

Take the pry tool and pry open the backing of the tablet around all four sides and pull off back.
-
-
-

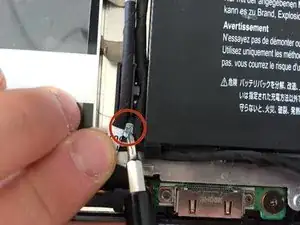

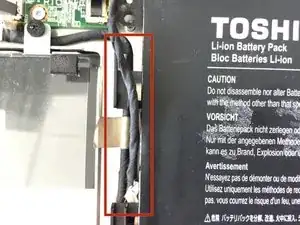

Remove shown wires from clips on the left hand side of the battery before pulling the battery completely out.
-
-
-

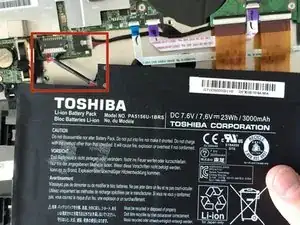

Remove highlighted plug out of the circuit board before completely removing the battery pack.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
