Einleitung

This guide is designed to help you quickly and safely replace the display screen when a problem arises. The display assembly includes the LCD, the front glass, and the display enclosure.

  1. lGTDhqPn2vSBF1sH
    lGTDhqPn2vSBF1sH
    xEITkmkCEC6HpSgt
    • Slide both of the latches to the outside to release the battery.

  2. IS2NP5VcbqH4QpaW
    IS2NP5VcbqH4QpaW
    iCVkATD62diSpHJ6
    • Pull the battery out by lifting the battery cover away from the laptop.

  3. chMZjKcMcfYuXZax
    chMZjKcMcfYuXZax
    QmcIUJQXCMOXwbUR
    BpqntDKfafsJhUc6
    • Flip the computer over and insert the plastic opening tool under the plastic strip at the top of the keyboard.

    • Pry the top plastic strip from the top of the keyboard.

    • Peel the strip completely away from the keyboard.

  4. 6JgcXlUkhKOYYJAx
    6JgcXlUkhKOYYJAx
    SuXgKyOHIBI1gMp1
    • Using your Phillips #00, unscrew the two 4.80mm screws at the top of the keyboard.

  5. 6WVHSBILyYAQGNjU
    6WVHSBILyYAQGNjU
    i6MSA5aDwKx3UdQL
    • When removing the keyboard, be careful not to rip the ribbon cable connecting the keyboard to the computer, to avoid damaging it.

    • Flip the keyboard up from the bottom in order to see the two ribbons connecting it to the motherboard.

  6. w4bOXuNq3Nw5RCLO
    • Using the plastic opening tools, pop out the ribbon cable from the rest of the computer.

  7. 4rcaPGoItMKd5bLb
    • Using the plastic opening tools, pop out the second ribbon cable from the rest of the computer.

  8. 2SfFnWDgVcZddlqx
    2SfFnWDgVcZddlqx
    J6KmaqUgXDYaQeq1
    • Completely remove the keyboard from the laptop by lifting up the part closest to the screen, and then gently pulling out the bottom half.

    • Keep the keyboard safe by storing it on a flat, non-metallic surface until needed.

  9. EmrjIm6cdrWc2xR5
    EmrjIm6cdrWc2xR5
    6RZrAd4akluQoNes
    • Locate the four silver screws on the front panel.

    • Using the Phillips #0, unscrew to remove all four 2.95mm silver screws.

  10. URwgWexLWsPNiixI
    URwgWexLWsPNiixI
    KT2uDEQmPwoWUrOm
    • Flip the laptop over and locate all seven screws on the bottom of the laptop.

    • Unscrew all seven Philips#00 7.70mm screws.

  11. IraO1HHrSWvKxvD1
    IraO1HHrSWvKxvD1
    ZYVQ56HYKgHeMQrb
    • Locate and unscrew the three silver Philips #00 2.85mm screws inside the battery compartment.

    • Locate and unscrew the five black Philips #00 3.25mm screws inside the battery compartment.

  12. 6dWMV3IJrWGLlw2N
    6dWMV3IJrWGLlw2N
    oxBfLhcEjPHUSGUu
    • Rotate the laptop so the back faces you.

    • Locate the two black Philips #00 7.65 screws, one by each hinge, and remove.

  13. RDkvkZsMdpe2XaRj
    RDkvkZsMdpe2XaRj
    VRkTWvcFqITurLev
    2lNJPsYVScQJ3mlB
    • Use the plastic opening tool to pry the top panel up from the base of the computer.

    • Slowly work your way around the computer with the plastic removing tool to make it easier to lift the top panel away from the base.

    • Carefully lift the top panel no more than six inches, as there are ribbon cables connecting the two pieces.

    • Disconnect ribbons, and slowly lift the top panel up, away from the base.

  14. EMHmFxEwYMGpQUXC
    EMHmFxEwYMGpQUXC
    SmZPKNQ6fmYdpMcF
    • Locate the ribbon cable from the motherboard.

    • Using plastic removing tools, pop the ribbon base from the motherboard.

  15. RRiWcl2V13IDjFC3
    RRiWcl2V13IDjFC3
    P1Z6u2DjBwm6OBjZ
    • Locate the two plugs from the motherboard.

    • Using plastic opening tools, remove each plug from the motherboard.

  16. gTglFg1wikMxp1Cj
    gTglFg1wikMxp1Cj
    cgFpymjgJGK6HOZg
    • Locate the ribbon cable partially hidden under the front panel.

    • Using plastic opening tools, pop out the ribbon cable from the motherboard.

  17. 1uObyfLQ1wXZLMoi
    • Make sure that all wires have been disconnected before proceeding to avoid damaging components.

    • Slowly lift the top panel away from the base of the computer.

    • Place the top panel away from the computer and keep in a flat non-metallic surface until needed.

  18. 3VbUuKJIZXvagSkS
    3VbUuKJIZXvagSkS
    OidTcLDUYTqvlOfo

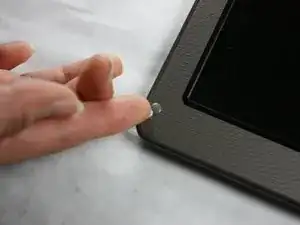

    • Rotate the computer so the screen is facing you and locate the four plastic screw covers; one at each corner of the screen

    • Using your fingernail, remove each cover in order to expose the screw.

  19. LMvvPDDUQVK1VBcn

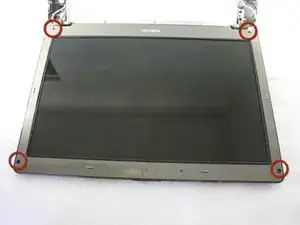

    • Remove the four Philips #00 4.85mm screws located at each corner of the screen.

  20. ViO5COXJlI51pFiT
    ViO5COXJlI51pFiT
    LemWZvJQBDPF4dRE

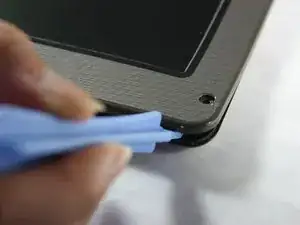

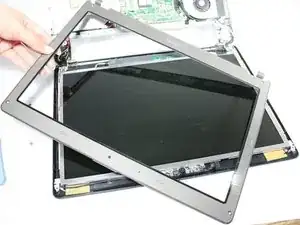

    • Insert the plastic opening tool in between the screen and the case to peel the plastic case away from the screen.

    • Lift the plastic case away from the rest of the screen.

  21. AhPobtMob4GyiJQs
    AhPobtMob4GyiJQs
    JrLwAACJwu6sXSvK
    bhYOB6XGcaiEEBed

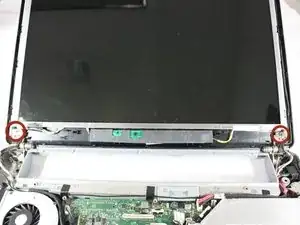

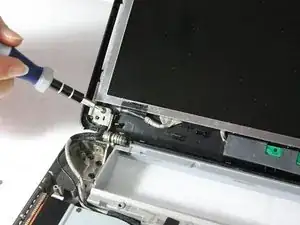

    • Locate and remove the two Philips #00 5.65 mm screws in the bottom right and bottom left corners of the screen.

    • The screw in the bottom left corner is attached to a black and white cord in the back casing.

    • To remove the cord from the motherboard, grip the sides of the cord and pull up from the motherboard.

  22. 2UZAr4cPj5AICUQw
    2UZAr4cPj5AICUQw
    pTJsN1xZxTERgAEV

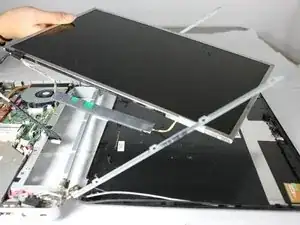

    • Locate and remove the eight Philips #00 5.65 mm screws, four on either side of the screen.

    • Lift the screen away from the rest of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
