Einleitung
The WiFi card is what assists your device with connecting to the internet without an Ethernet cable. If nothing is wrong with the router that you are trying to connect with then you may need to replace your WiFi card.
Werkzeuge
-
-

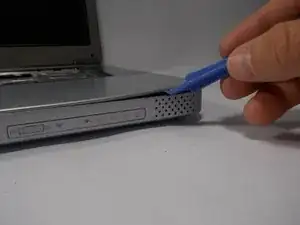

Flip the computer over and insert the plastic opening tool under the plastic strip at the top of the keyboard.
-
Pry the top plastic strip from the top of the keyboard.
-
Peel the strip completely away from the keyboard.
-
-
-
Flip the keyboard up from the bottom in order to see the two ribbons connecting it to the motherboard.
-
-
-
Using the plastic opening tools, pop out the second ribbon cable from the rest of the computer.
-
-
-
Completely remove the keyboard from the laptop by lifting up the part closest to the screen, and then gently pulling out the bottom half.
-
-
-
Locate the four silver screws on the front panel.
-

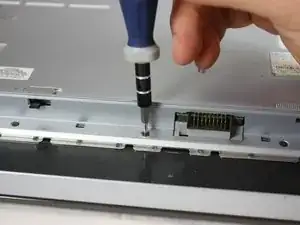

Using the Phillips #0, unscrew to remove all four 2.95mm silver screws.
-
-
-

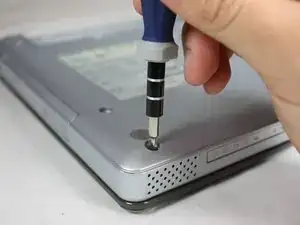

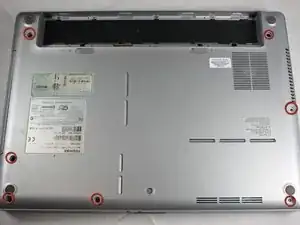

Flip the laptop over and locate all seven screws on the bottom of the laptop.
-
Unscrew all seven Philips#00 7.70mm screws.
-
-
-

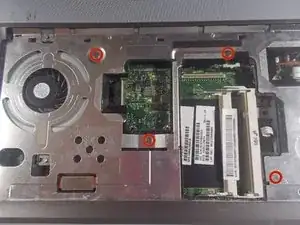

Locate and unscrew the three silver Philips #00 2.85mm screws inside the battery compartment.
-
Locate and unscrew the five black Philips #00 3.25mm screws inside the battery compartment.
-
-
-

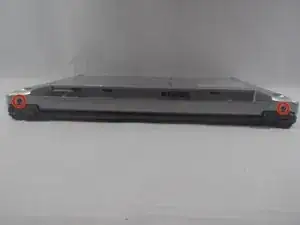

Rotate the laptop so the back faces you.
-

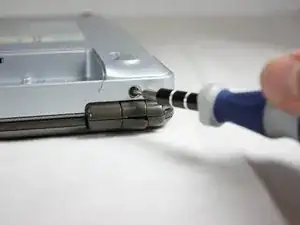

Locate the two black Philips #00 7.65 screws, one by each hinge, and remove.
-
-
-

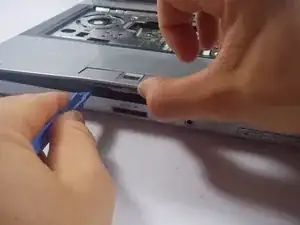

Use the plastic opening tool to pry the top panel up from the base of the computer.
-
Slowly work your way around the computer with the plastic removing tool to make it easier to lift the top panel away from the base.
-
Disconnect ribbons, and slowly lift the top panel up, away from the base.
-
-
-

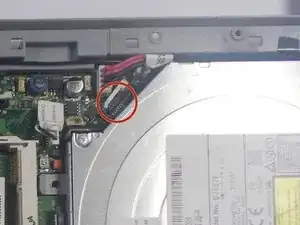

Locate the ribbon cable from the motherboard.
-

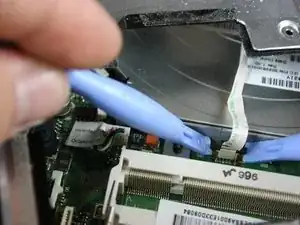

Using plastic removing tools, pop the ribbon base from the motherboard.
-
-
-

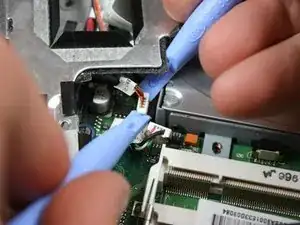

Locate the two plugs from the motherboard.
-
Using plastic opening tools, remove each plug from the motherboard.
-
-
-

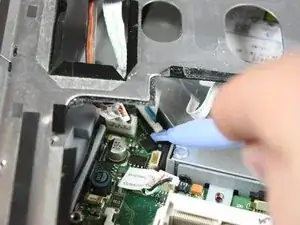

Locate the ribbon cable partially hidden under the front panel.
-
Using plastic opening tools, pop out the ribbon cable from the motherboard.
-
-
-

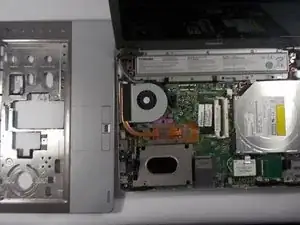

Slowly lift the top panel away from the base of the computer.
-
Place the top panel away from the computer and keep in a flat non-metallic surface until needed.
-
-
-

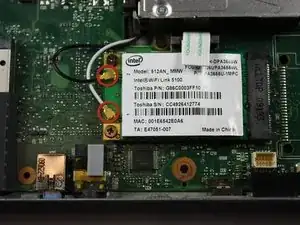

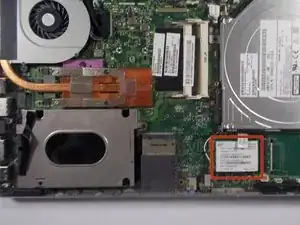

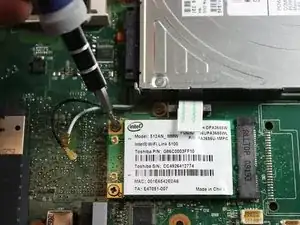

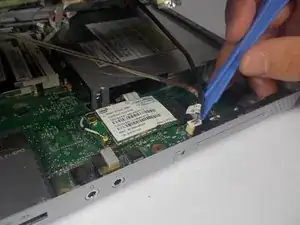

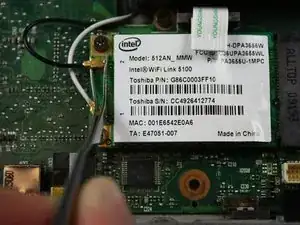

Locate the black wire and white wire connected to the WiFi card.
-
Using a pair of tweezers remove the wires by lifting them straight up away from the board.
-
-
-

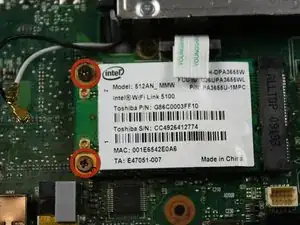

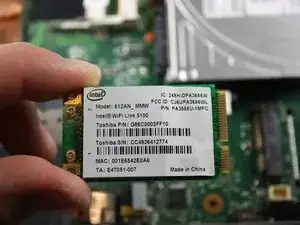

Grip the sides of the WiFi card and lift it up partially.
-

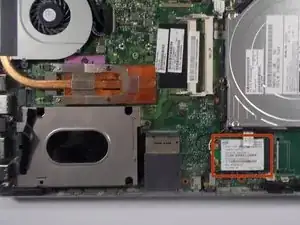

Gently pull the WiFi card away from the black plastic base to remove.
-
To reassemble your device, follow these instructions in reverse order.
