Toshiba Satellite E205-S1904 Fan Replacement

Geschrieben von: Tyler Andrews
  • Kommentare: 0
Toshiba Satellite E205-S1904 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

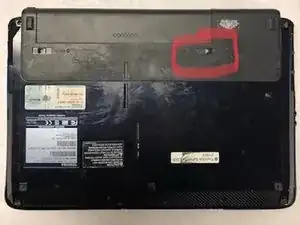

  1. hj2RVLlKQqj4aOsd

    • Slide locking tab above battery to open position while sliding out battery

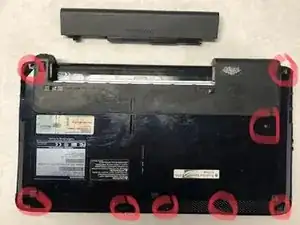

  2. vDUoJjUahTQ6IiPI

    • Remove Back Plate Screws (PH1 Screws)

    • Use Plastic Opening Tool to separate back panel

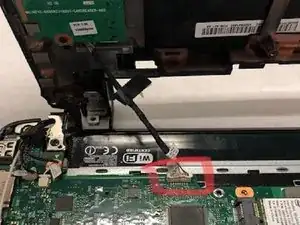

  3. CDDxvkibo3DEm62F

    • Disconnect small attached cable

    • Remove Back Panel

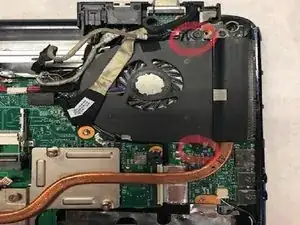

  5. yZ5VKfGOmYukaieo

    • Locate Fan

    • Remove Screws Connected to Fan (PH1)

    • Disconnect all wires connected to Fan

    • Remove Fan

Abschluss

To reassemble your device, follow these instructions in reverse order.
