Toshiba Satellite E45-B4100 USB Port Circuit Board Replacement

Geschrieben von: Tori Ryals
  • Kommentare: 0
Toshiba Satellite E45-B4100 USB Port Circuit Board Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

  1. 5okpVOTswOjFASB1

    • Remove the fourteen 3.75mm screws with a Phillips #0 Screwdriver as shown.

  2. PmqVxUhNv2xScNvy

    • Gently pull out the battery.

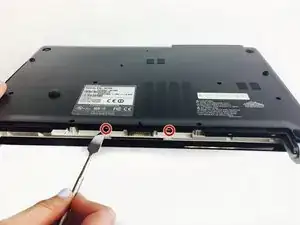

  3. FXr3WJkcuO3sC4cV
    FXr3WJkcuO3sC4cV
    2GEDnXPTYX4ocjxo
    lXyyuxQHxZCM4hxt

    • Using a spudger, poke the white tabs in by the battery until you hear a click.

    • Separate the laptop by sliding a spudger in between the black and silver covers.

    • Be sure to use ESD-safe tools, we recommend the iFixit toolkit.

  4. VuUfxKy3pR5S6run

    • Using the #0 Phillips Head, unscrew the two 3.75mm screws connecting the USB Port Circuit Board to the hard drive and remove the USB Port Circuit Board as shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
