Toshiba Satellite E45T-A4300 Hard Drive Replacement

Geschrieben von: James Nguyen
  • Kommentare: 0
Toshiba Satellite E45T-A4300 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

7 - 10 Minuten

Einleitung

The hard drive is what stores all the memories of the laptop. If the hard drive is damaged, then the laptop won’t ‘remember’ how to be a laptop anymore. A replacement in the hard drive will be needed to bring back the laptop to life.

  1. vRAGMnpNrMauTScU

    • Remove the twelve 5 mm Phillips #1 screws from the back panel.

  2. QVsZLjGHZlpF64NT

    • Pry the back panel open with the plastic spudger or fingernails.

    • Pry it gently so that the back panel does not crack.

  3. dyRmCeExQNMkkIOu

    • Remove the three 7mm black screws using the Phillips #1 screwdriver.

  4. I2DHe131Tn2t6twZ

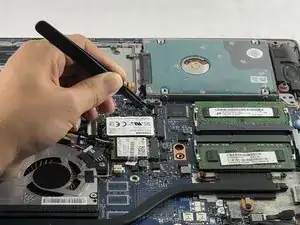

    • Remove the hard drive’s connection port with grooved tweezers.

  5. j2BwTxGeDxLTCFEM
    j2BwTxGeDxLTCFEM
    B3uWrCYmQG4tHfMd

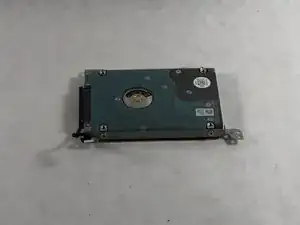

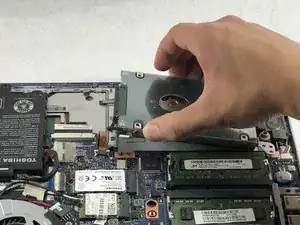

    • Pull the hard drive out of the hook and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
