Toshiba Satellite E45t-A4300 Back Panel Replacement Guide

Geschrieben von: James Nguyen
  • Kommentare: 0
Toshiba Satellite E45t-A4300 Back Panel Replacement Guide

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 - 3 Minuten

Einleitung

The back panel is the gatekeeper that holds all the components of the device inside. If the back panel needs to be taken out for access to the other components or that the back panel is damaged, then this guide will illustrate how to remove it.

  1. vRAGMnpNrMauTScU

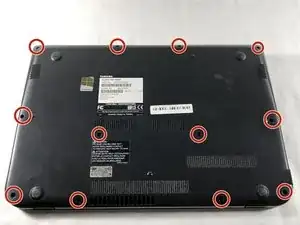

    • Remove the twelve 5 mm Phillips #1 screws from the back panel.

  2. QVsZLjGHZlpF64NT

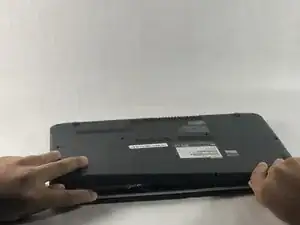

    • Pry the back panel open with the plastic spudger or fingernails.

    • Pry it gently so that the back panel does not crack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
