Toshiba Satellite E45t-A4300 Fan Replacement

Geschrieben von: Jose Marques
  • Kommentare: 0
Toshiba Satellite E45t-A4300 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

8 - 10 Minuten

Einleitung

The fan is what keeps the laptop from overheating so that the laptop can keep running the programs and surfing the web without slowing down. If the laptop persists in being uncomfortably hot, even after air dusting the fan several times, then replacing the fan may be needed.

  1. vRAGMnpNrMauTScU

    • Remove the twelve 5 mm Phillips #1 screws from the back panel.

  2. QVsZLjGHZlpF64NT

    • Pry the back panel open with the plastic spudger or fingernails.

    • Pry it gently so that the back panel does not crack.

  3. 6sr5O64JTjP6LPef
    6sr5O64JTjP6LPef
    iPRiWXqiC1VGlH5U

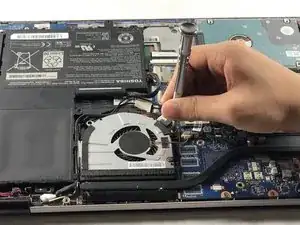

    • Remove the two 5 mm screws using a Phillips #1 screwdriver.

  4. jlmiWCcYLPTk6I2m

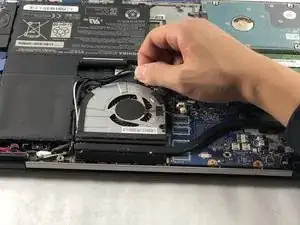

    • Gently disconnect the fan cable from the device.

  5. XRpklRgB4CnDiCqn
    XRpklRgB4CnDiCqn
    h6uC4MZxcDSFSZJQ

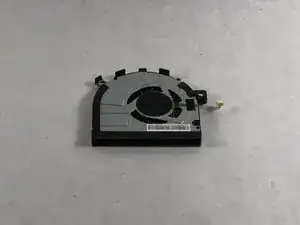

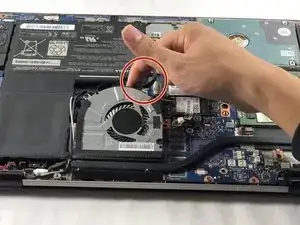

    • Move the wires away from the fan’s hook.

    • Remove the fan from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
