Toshiba Satellite E45t-B4204 Charging Port Replacement

Geschrieben von: Eduardo
  • Kommentare: 1
Toshiba Satellite E45t-B4204 Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

45 Minuten

Einleitung

This is a quick guide on how to replace the charging port of a Toshiba Satellite E45t-B4204. Replacing the charging port can fix a charging port due to excessive use.

  1. 5OhYyqUuExSZxOrD
    5OhYyqUuExSZxOrD
    P3HOkivbQjBc1Smv
    a31jQsJmJXnDOX5k

    • Remove all 14 of the 4 mm screws on the back side of the laptop with a Phillips #1 screwdriver.

  2. inEEwZumaeFWKZLJ
    inEEwZumaeFWKZLJ
    Y45GDXT15wrhRfWG

    • Gently pull out the battery.

  3. lFEhwxJg3O6MIsVw
    lFEhwxJg3O6MIsVw
    gZei2vDG6cFb3ivA
    nCSiNtHBWxRBNuTi

    • Lift up in the spaces left by the battery to create a gap between the back case and the laptop body.

    • Run a spudger along both sides of the laptop to widen the separation and release the clips holding the back case on.

    • Remove the back case.

  4. n2Lylj4PTxOBxEHn

    • Locate the charging port housing.

  5. MXyCBmAvETGTZBaf
    MXyCBmAvETGTZBaf
    HOuGGVFbdBOjJEpJ
    gO2G26Gh654DNh1G

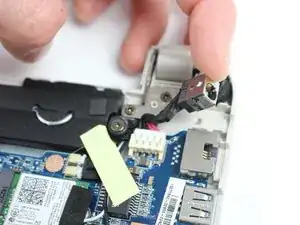

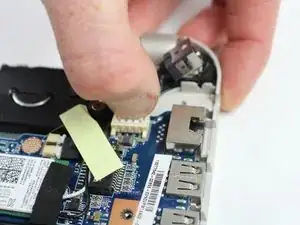

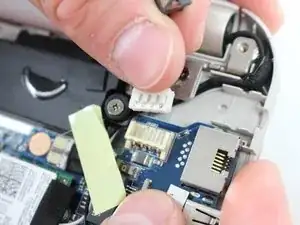

    • Unplug the charging plug housing from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Eduardo

Mitglied seit: 22/03/18

411 Reputation

Ein Kommentar

You didn’t complete the instructions. It ended after you said unplug the charging port housing. The pictures are not clear. Please add red lines or arrows, etc. to show what you are trying to do. It doesn’t show or spell out the next steps to replace it.
