Toshiba Satellite E45t-B4204 Keyboard Replacement

Geschrieben von: Youdong Yan
  • Kommentare: 1
Toshiba Satellite E45t-B4204 Keyboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

17

Zeitaufwand

1 Stunde

Einleitung

This guide will explain the process of removing the keyboard in the Toshiba Satellite E45t-B4204. Keyboard removal requires nearly all major components being removed to

  1. 5OhYyqUuExSZxOrD
    5OhYyqUuExSZxOrD
    P3HOkivbQjBc1Smv
    a31jQsJmJXnDOX5k

    • Remove all 14 of the 4 mm screws on the back side of the laptop with a Phillips #1 screwdriver.

  2. inEEwZumaeFWKZLJ
    inEEwZumaeFWKZLJ
    Y45GDXT15wrhRfWG

    • Gently pull out the battery.

  3. lFEhwxJg3O6MIsVw
    lFEhwxJg3O6MIsVw
    gZei2vDG6cFb3ivA
    nCSiNtHBWxRBNuTi

    • Lift up in the spaces left by the battery to create a gap between the back case and the laptop body.

    • Run a spudger along both sides of the laptop to widen the separation and release the clips holding the back case on.

    • Remove the back case.

  4. I1CD254CKpdxbU46
    I1CD254CKpdxbU46
    hoi6SFwgeAAYUiq1

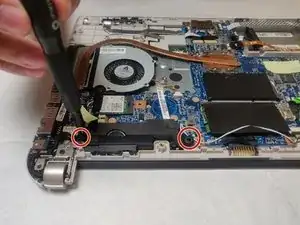

    • Remove speaker by unscrewing the 4 screws at the side of the speaker with the Phillips #1 screwdriver.

  5. JvBcCRNwsvrbjwJs
    JvBcCRNwsvrbjwJs
    FsoerOUJrRwOcUB5

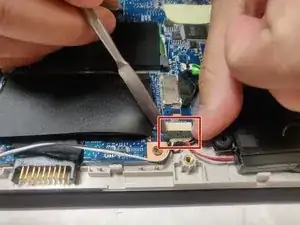

    • Unplug speaker wires from the motherboard using a spudger or plastic opening tool.

    • Using a metal spudger as shown in the photo could potentially damage your device.

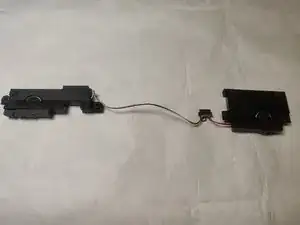

    • Remove speakers.

  6. Vg2RoTPLFqAhZ1mK
    Vg2RoTPLFqAhZ1mK
    VNomMLq14VoqICsm

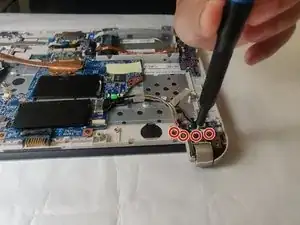

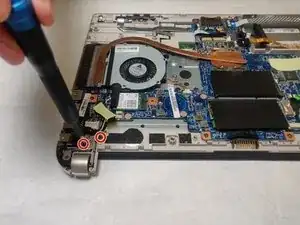

    • Unscrew 6 screws from the chassis with the Phillips #1 screwdriver.

  7. QsEOXbYFCuXtE323
    QsEOXbYFCuXtE323
    cjON5nQrxFtgCVSc

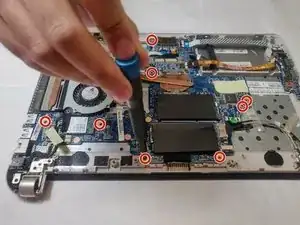

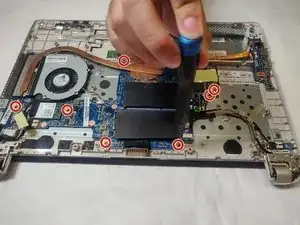

    • Unscrew 8 screws from the motherboard using the Phillips #1 screwdriver.

  8. uqJxja1VHD1gLKPJ
    uqJxja1VHD1gLKPJ
    VEjFJtRsEKjPFhK4

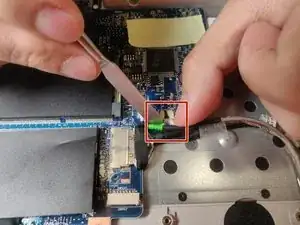

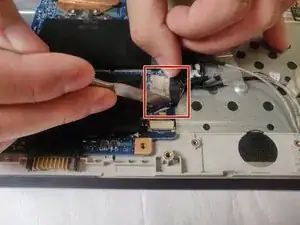

    • Unplug wire from the motherboard.

  9. K6nLTkGYhTBNLmvN
    K6nLTkGYhTBNLmvN
    hGP1Sxox1DFTGLGc
    BP3B3bNNayQDGpa6

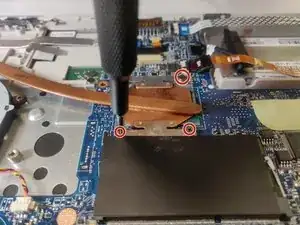

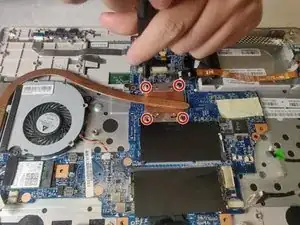

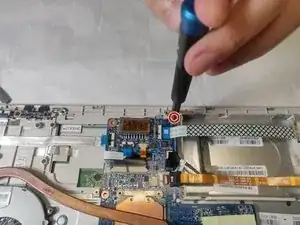

    • Unscrew screws from the motherboard using the Phillips #1 screwdriver.

  10. CVgsuJdRwN1eVcD2
    CVgsuJdRwN1eVcD2
    BBKQFhmgRxGDZYQ1

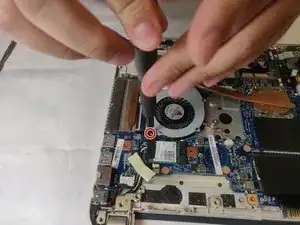

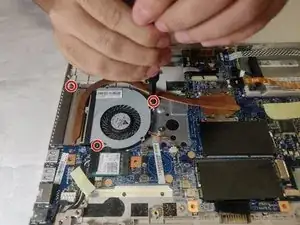

    • Unscrew screws from the CPU heat sink using the Phillips #1 screwdriver.

  11. NBHG1W2ZKVgKQQOf
    NBHG1W2ZKVgKQQOf
    Z1ETDgTa1qDyS4um

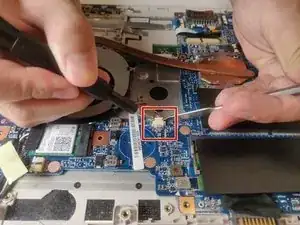

    • Unplug the wire from the motherboard.

    • Remove the heat sink.

  12. vMokyZQtZtR3h6dq
    vMokyZQtZtR3h6dq
    hmDPO3gfTF1KLNoV

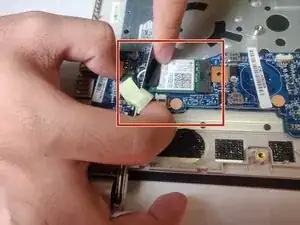

    • Remove the CPU.

  13. TXUoic4WIHpXqp1O
    TXUoic4WIHpXqp1O
    gFtrWahZWqTnd4jY
    5DLWjUIA5kGbjrLU

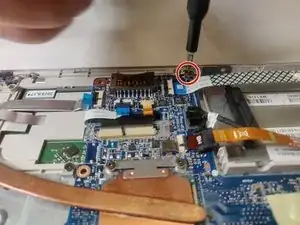

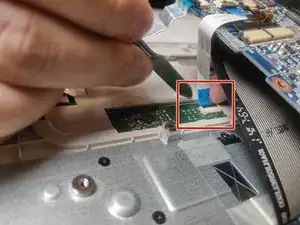

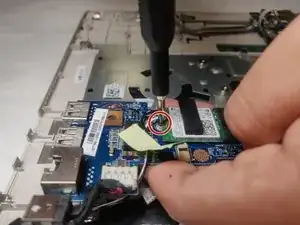

    • Unscrew the motherboard with the Phillips #1 screwdriver.

  14. wduUsagU1CMCPdWJ
    wduUsagU1CMCPdWJ
    CXEaSpKcJxjeFmmO
    UEORJUQQSEtuq5sG

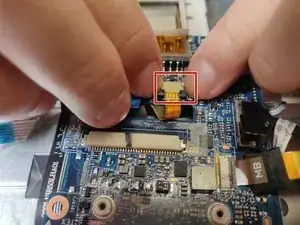

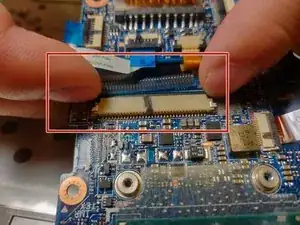

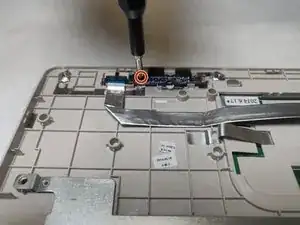

    • Unplug wire from the motherboard.

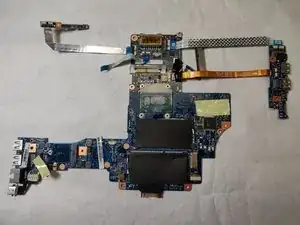

    • Remove the motherboard.

  15. Vr2wqOdYSHRdBOIg
    Vr2wqOdYSHRdBOIg
    lXwjw5BXGBe1HURp
    ObyH2fmPn4llUL2p

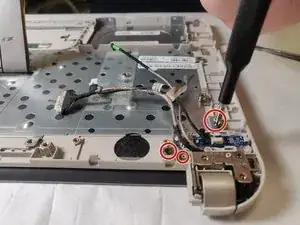

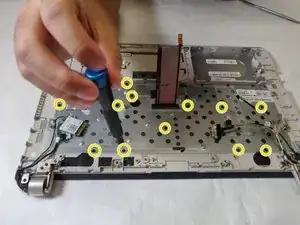

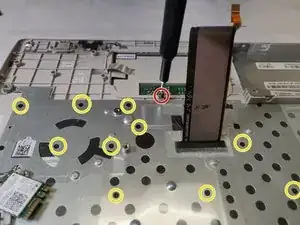

    • Unscrew the keyboard cover using the Phillips #0 screwdriver.

    • Unscrew the keyboard cover using the #1 screwdriver.

  16. 6naGS2AVchch1i5d

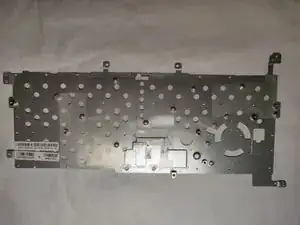

    • Remove the keyboard cover.

  17. qmybIrHxE2HuGSFK

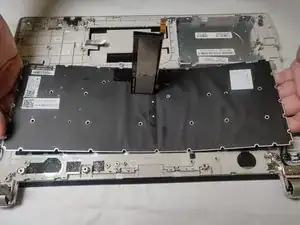

    • Remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Youdong Yan

Mitglied seit: 22/05/19

229 Reputation

Ein Kommentar

Do you know where in this process the webcam is connected/disconnected? I just completed this process to replace the keyboard and swap in a new SSD while I had everything opened up. I got everything closed back up, and it's all running great, but just noticed that the computer no longer recognizes that there is a webcam. I would swear I plugged in everything that I had unplugged, but I can't figure out where the webcam connection might be.
