Toshiba Satellite E45t-B4204 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

While replacing the speakers for the Toshiba Satellite E45t-B4204 you may want to ground yourself before taking things apart to prevent damaging components of the computer. Speakers may need replaced if you are not hearing sound from your computer.

  1. 5OhYyqUuExSZxOrD
    5OhYyqUuExSZxOrD
    P3HOkivbQjBc1Smv
    a31jQsJmJXnDOX5k

    • Remove all 14 of the 4 mm screws on the back side of the laptop with a Phillips #1 screwdriver.

  2. inEEwZumaeFWKZLJ
    inEEwZumaeFWKZLJ
    Y45GDXT15wrhRfWG

    • Gently pull out the battery.

  3. lFEhwxJg3O6MIsVw
    lFEhwxJg3O6MIsVw
    gZei2vDG6cFb3ivA
    nCSiNtHBWxRBNuTi

    • Lift up in the spaces left by the battery to create a gap between the back case and the laptop body.

    • Run a spudger along both sides of the laptop to widen the separation and release the clips holding the back case on.

    • Remove the back case.

  4. AO11RR2wf2FZcsYA
    AO11RR2wf2FZcsYA
    LpohaD1HSLpoeE4I
    WArFJosymnZYyKCe

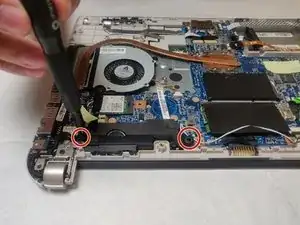

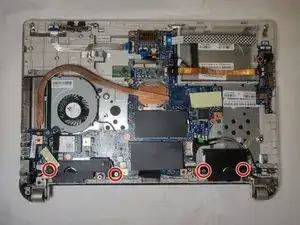

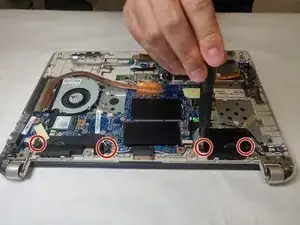

    • Unscrew the 4 screws at the sides of each speaker with the Phillips #1 screwdriver.

  5. AhyiERHBvjiuKXgt

    • Disconnect the speaker cable from the motherboard using a spudger or plastic opening tool.

    • Using a metal spudger as shown in the photo has the potential to damage your device.

  6. ylIFEsOKsNsv6UkJ

    • Remove the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
