Toshiba Satellite E45t-B4204 Thermal Paste Replacement

Geschrieben von: Eduardo
  • Kommentare: 0
Toshiba Satellite E45t-B4204 Thermal Paste Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

1 Stunde

Einleitung

This will be a quick guide on how to replace the thermal paste of a Toshiba Satellite E45t-B4204. Replacing the thermal paste will help transfer the heat from the CPU to the heatsink and out of the laptop.

  1. 5OhYyqUuExSZxOrD
    5OhYyqUuExSZxOrD
    P3HOkivbQjBc1Smv
    a31jQsJmJXnDOX5k

    • Remove all 14 of the 4 mm screws on the back side of the laptop with a Phillips #1 screwdriver.

  2. inEEwZumaeFWKZLJ
    inEEwZumaeFWKZLJ
    Y45GDXT15wrhRfWG

    • Gently pull out the battery.

  3. lFEhwxJg3O6MIsVw
    lFEhwxJg3O6MIsVw
    gZei2vDG6cFb3ivA
    nCSiNtHBWxRBNuTi

    • Lift up in the spaces left by the battery to create a gap between the back case and the laptop body.

    • Run a spudger along both sides of the laptop to widen the separation and release the clips holding the back case on.

    • Remove the back case.

  4. 1OpllkttacRONcDR
    1OpllkttacRONcDR
    LPiVSxK3o2ldvUtf

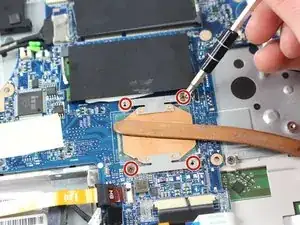

    • Locate and remove the four 3 mm screws around the CPU.

    • The CPU is located beneath the copper heatsink.

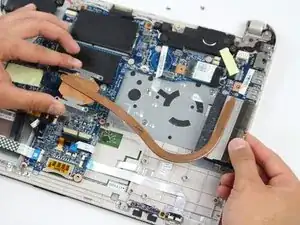

  5. BUDSmPu3Bca6J4Lq
    BUDSmPu3Bca6J4Lq
    p4LVThyqipbPYKpg

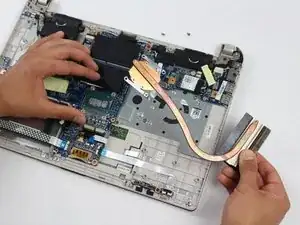

    • Carefully remove the heatsink from the rest of the motherboard and casing.

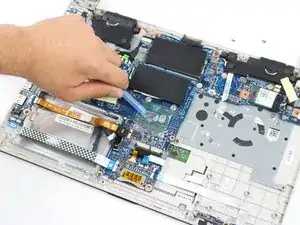

  6. qEiJMKxFJGKLx3lL
    qEiJMKxFJGKLx3lL
    sEnEBcKUPRCRnbcH

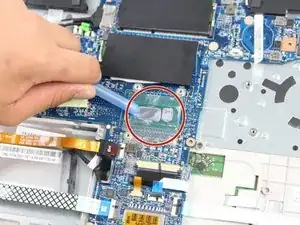

    • Now that the heatsink has been removed the CPU is visible. The CPU is the green square with silver metal in the center.

    • Reapply thermal paste above the CPU.

Abschluss

To reassemble your device, follow these instructions in reverse order.
