Toshiba Satellite E45t-B4204 Trackpad Replacement

Geschrieben von: Marvin Scott
  • Kommentare: 0
Toshiba Satellite E45t-B4204 Trackpad Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

40 Minuten

Einleitung

This guide will teach you how to replace a Toshiba Satellite E45t-B4204 trackpad. The trackpad is used as a built in cursor control function to navigate through on screen actions. If the trackpad is failing to move the cursor around the screen, then use this guide to replace it. Make sure you ground yourself before opening the backing.

  1. rRtGahNvvsWmjWN2

    • Remove the 15 screws holding the back panel in place with the Phillips #1 screwdriver.

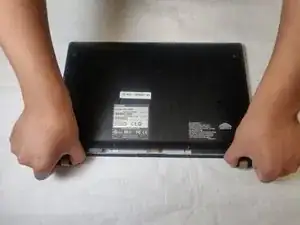

  2. yhkBHJiXPmP1jSXX

    • Remove the battery from the laptop.

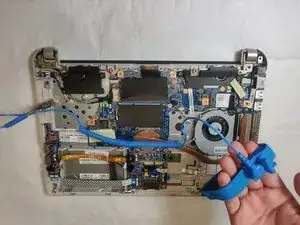

  3. CuEVS2IqZpK2YLrg

    • Ground yourself.

    • Failure to ground yourself may result in electric shock.

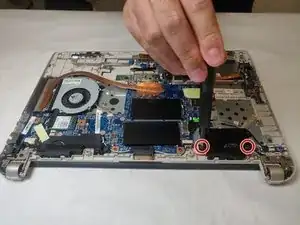

  4. VSJeNJfqhwyHRjTJ
    VSJeNJfqhwyHRjTJ

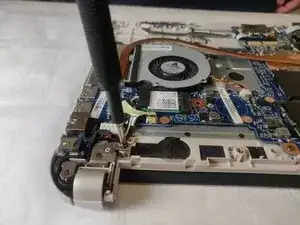

    pNVPMTlA6UUMMsjK

    • Remove speaker screws.

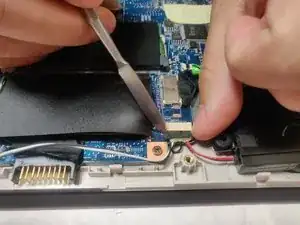

  5. 1mHpjNTDNmQ55n2N

    • Unplug and remove the speakers using the spudger.

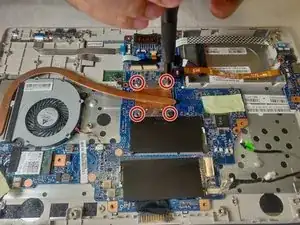

  6. jy4KAUOEAgZwdIgb

    • Remove the four screws holding the processor in place.

    • Remove the processor.

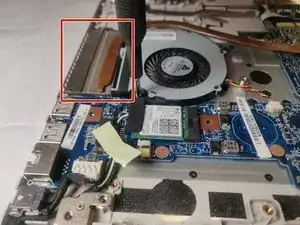

  7. ASLyYgGiLCWWbHhT

    • Remove the heatsink.

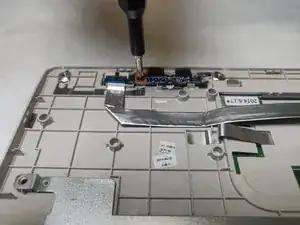

  8. mdQVa1r1BNLioyYp

    • Remove the Wi-Fi card.

    • The Wi-Fi card is on the opposite side of the fan from the processor.

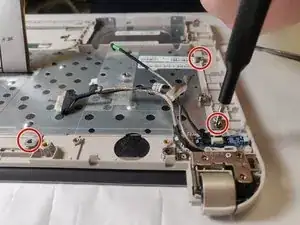

  9. thwBFDnQfx62wDWs

    • Remove keyboard screws.

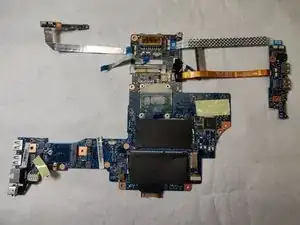

  10. BbhQLZctCmysQQii

    • Remove motherboard and attached components.

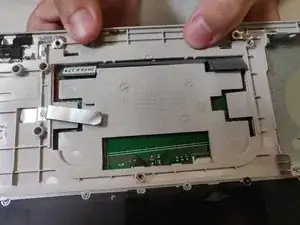

  11. ORnSQjOtSRFySkGc

    • Remove trackpad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
