Toshiba Satellite E45t-B4300 USB HDMI Audio Circuit Board Replacement

Geschrieben von: Joshua Swanson
  • Kommentare: 0
Toshiba Satellite E45t-B4300 USB HDMI Audio Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace a defective USB, HDMI, and audio jack circuit board in your Toshiba E45t-B4300.

  1. GTZrlYWCDWCnBeiF
    GTZrlYWCDWCnBeiF
    3Fegxq1HVAi6eltF

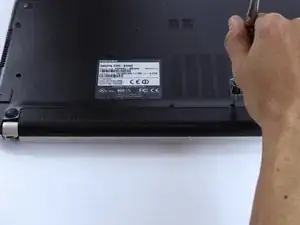

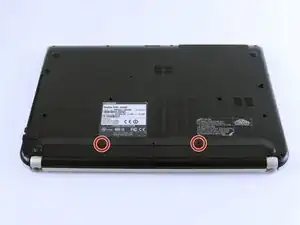

    • Power off your laptop before continuing.

    • Remove the following two 4mm screws with a Phillips #0 screwdriver.

  2. VLc2gTqPrtDh6jo4

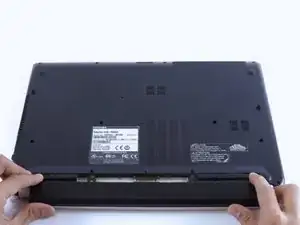

    • Slide the battery out towards you.

  3. RFPZGwOdkHVnJCcm

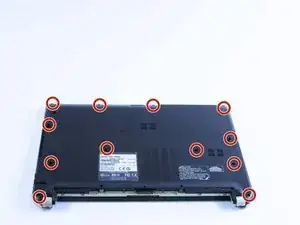

    • Remove the following twelve 4mm screws with a Phillips #0 screwdriver.

  4. Uo6efJNiZTYeCnhs

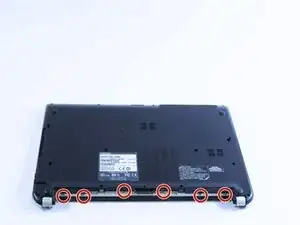

    • Use a spudger to depress the six white clips connecting the plastic cover

  5. YRv2HIRvCqbZx2ET

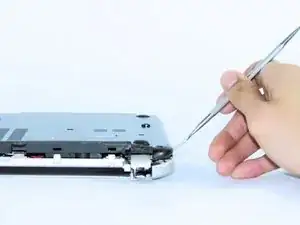

    • Run the spudger or a plastic card around the entire laptop to release the rest of the clips.

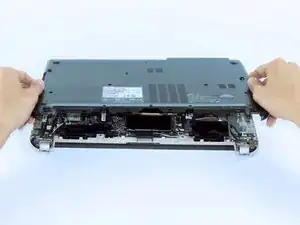

  6. Tm6bGBIfRNfhPhJB

    • Remove the cover and set to the side.

  7. UOOiCTiNh2fCOrKN
    UOOiCTiNh2fCOrKN
    fpwMiqXsqwn5WJWX
    H4IJuOqXWg1kQpha

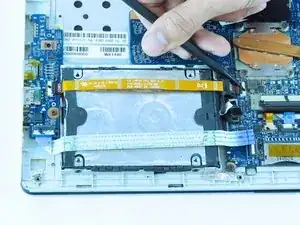

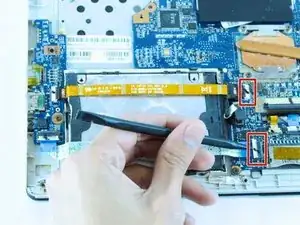

    • Use the point end of the spudger to lift the clips that attach the two ribbons to the motherboard.

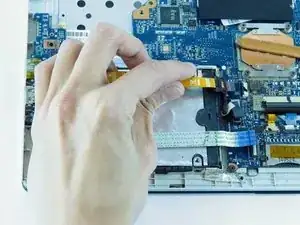

    • Pull out the ribbons from the motherboard.

  8. h2IcOlwTExYOCxYx
    h2IcOlwTExYOCxYx
    l3R16BcS5CRpmpxZ

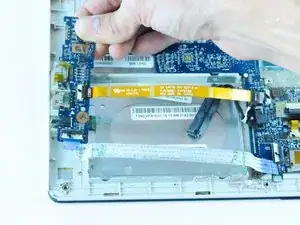

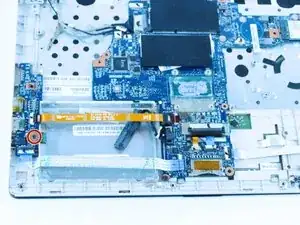

    • Unscrew the 2mm screw with a Phillips #0 screwdriver.

    • Remove the circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
