Einleitung
Follow this guide to remove and replace the worn out battery for the Toshiba E55t laptop. The battery is easy to access and requires minimal tools.
Ersatzteile
-
-
Flip the laptop over so that the backside is facing up.
-

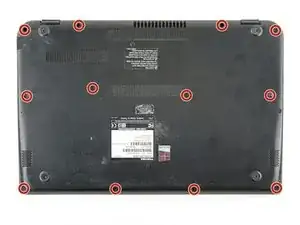

Remove the twelve 7.8 mm long Phillips screws securing the back cover.
-
-
-

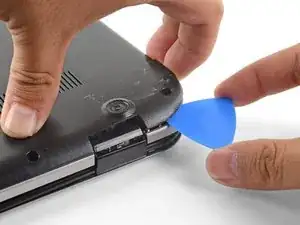

Use your fingers to pry the back cover up slightly near one of the display hinges.
-

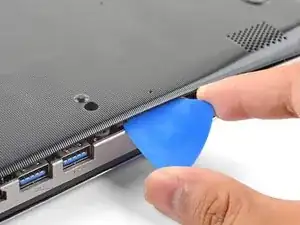

Insert a plastic opening pick into the gap created between the back cover and the laptop.
-
Run the pick along the perimeter seam, twisting it as you go to release the clips holding the back cover.
-
-
-
Once all of the perimeter clips have been released, grasp the back cover by an edge.
-

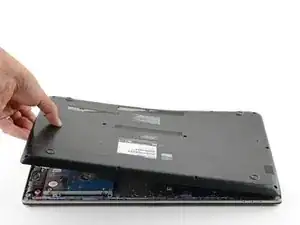

Slowly lift the back cover away, wiggling it slightly to help release any remaining clips.
-

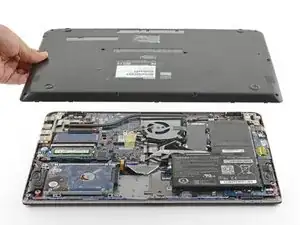

Remove the back cover.
-
Realign the cover onto the laptop and set the cover down in place.
-
Squeeze the edges of the cover against the laptop and press near the center to click the clips back in place.
-
-
-
Peel and remove the black tape holding the battery cable in place.
-

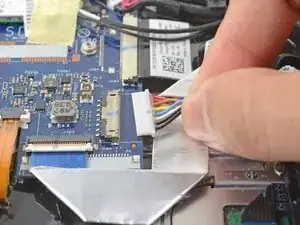

Use your fingers to grasp the battery cable near the connector and carefully pull it out of its socket.
-
-
-
Remove the three 5.7 mm long Phillips screws securing the battery to the laptop.
-
Remove the battery.
-
To reassemble your device, follow these instructions in reverse order.
For optimal performance, calibrate your newly installed battery: Charge it to 100% and keep charging it for at least 2 more hours. Then use your device until it shuts off due to low battery. Finally, charge it uninterrupted to 100%.
Take your e-waste to an R2 or e-Stewards certified recycler.
