The hard drive may need replacement due to a variety of reasons such as malfunction, overuse, etc. This guide will demonstrate how to find, and remove the laptop's hard drive in order for replacement.
Werkzeuge
-
-
Close the laptop and flip it over so that the base is facing upward.
-
Using the JIS #0 screwdriver tip unscrew all 10, M2X4 size screws holding down the lid.
-
Using a spudger pry the bottom lid of the laptop from the rest of the laptop.
-
-
-
Remove the yellow tape that connects the battery to the rest of the laptop by simply pulling it off.
-
Disconnect the indicated cable from the cable connector by gently pulling on it.
-
Lift up the battery carefully.
-
-
-
The hard drive is connected at the end of the white barcode.
-

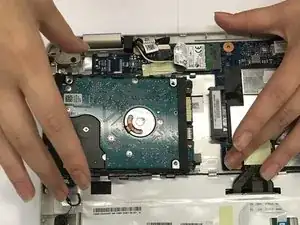

To remove, first pull up on the end of the hard drive opposite of the barcode.
-
-
-

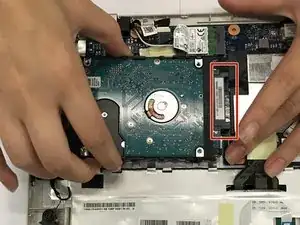

After pulling up on the hard drive, pull in the opposite of the direction of the white barcode.
-
To reassemble your device, follow these instructions in reverse order.
