Einleitung
If your hard drive is corrupted or you want to install a new hard drive with more space, replacing it is fairly simple.
Werkzeuge
-
-
Close the laptop lid and flip the laptop over.
-
Switch the lock button on the left to the unlock position. (The unlock position is to the left side.)
-
-
-
Push the release button to the right.
-
Hold the release button to the right and lift the battery out of its housing.
-
-
-
Flip the laptop over so that you can see the back. Make sure that the volume scroller is closest to you when it is flipped over.
-
Locate the hard drive compartment. This is in the bottom left hand side of the laptop.
-

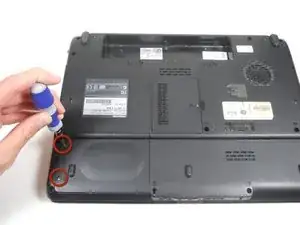

Remove the two 5 mm type-0 Phillips head screws that secure the door and save them to a safe location.
-

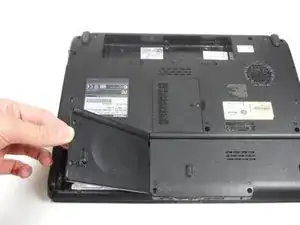

Remove the hard drive cover.
-
-
-

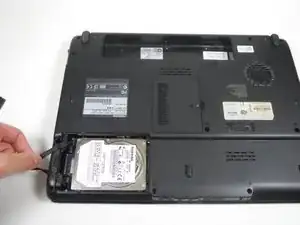

With the small door removed, find the black ribbon that is attached to the hard drive tray.
-

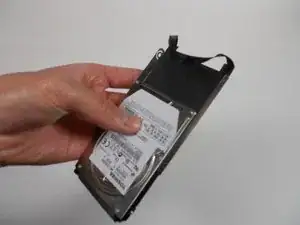

Carefully pull the ribbon to the left so that the hard drive tray slides out neatly.
-
-
-

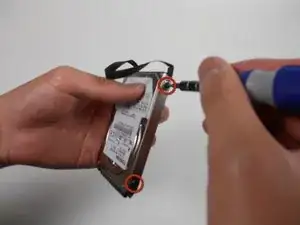

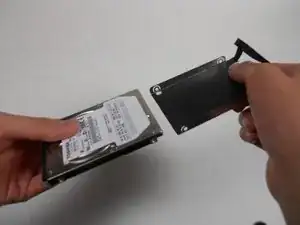

Remove the four 4.2 mm type-0 Phillips head screws located on the side of the hard drive enclosure.
-
To reassemble your device, follow these instructions in reverse order.
