Toshiba Satellite L305-S5875 Hinge Replacement

Geschrieben von: Tyler
  • Kommentare: 1
Toshiba Satellite L305-S5875 Hinge Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

If the hinges become loose from wear and tear or break, creating hassle when using the computer, on your Toshiba Satellite L305-S5875, this guide walks you through how to access and tighten, or replace as needed, the hinges on your Toshiba Satellite L305-S5875.

  1. yejh3jFHUrdkNXh4
    yejh3jFHUrdkNXh4
    pPi1MkgMjSHIptcH
    vEVUuBaaXGXXBk5L

    • Open the laptop so the keyboard is facing you.

    • Using your fingers, remove the thin plastic cover above the keyboard.

    • Potential for device damage: Do not apply too much force when removing the cover piece as it can break.

  2. B1GedYpFtrkYDVHm

    • Remove the two 4.8 mm screws from underneath the plastic cover piece using a Phillips #00 screwdriver.

  3. WfvqpotmeAIPigdR
    WfvqpotmeAIPigdR
    1VxPFcNFR4QvMPsg

    • Starting at the top, gently raise the keyboard enough to remove it from the socket.

    • Potential for device damage: DO NOT pull out the keyboard after it's out of its socket. The keyboard is connected to the hard drive through a data cable and removing forcefully could damage the cable and laptop.

  4. V5KRspVUlA5esLrg
    V5KRspVUlA5esLrg
    BMJ4P2LLaIk1ysRB

    • Locate the data cable that is connected to the motherboard.

    • Pull the white ZIF connector towards the screen to remove it.

    • Pull the black ribbon cable away from the screen.

  5. h1PThA5SvAZQhe3Y

    • With the black ribbon cable now disconnected, remove the keyboard from its housing.

  6. hokVXquLEyByNlMx
    hokVXquLEyByNlMx
    4dKjspWEeAnC6Uey

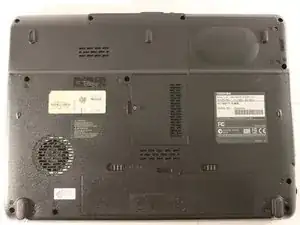

    • Close your laptop and flip it over.

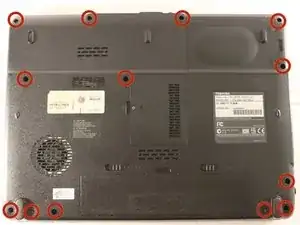

    • Remove the 13 screws using a Phillips #00 screwdriver.

  7. wC6xHGCc5QqmPwsZ

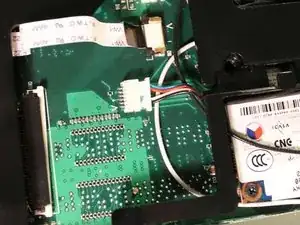

    • Gently disconnect the ribbon cable.

    • Gently disconnect the multicolored cable.

  8. leldOosBmx6VyGJb

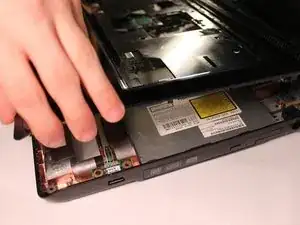

    • Gently pull the top case from the bottom case of the laptop.

  9. RM5EJfjeukyutNwD
    RM5EJfjeukyutNwD
    XPYnwPyMBNWu3SSD

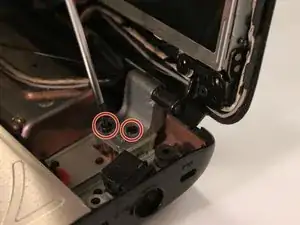

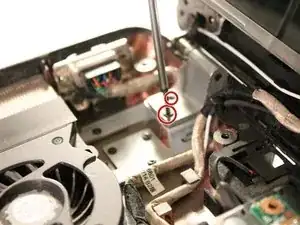

    • Unscrew the two screws on the hinge. (Be careful to not damage nearby wires)

    • Both hinges shown, but replacing both may not be necessary.

    • Congratulations, you may now remove and replace your hinge!

Abschluss

To reassemble your device, follow these instructions in reverse order.
