Einleitung

Use this guide to remove or replace the screen in your Toshiba Satellite L305-S5946. This may be necessary if the screen is blank when the computer is on.

  1. OFyVSJM22YeKOGbR
    • Place the laptop upside-down with the display hinges facing away from you.

  2. EsonHCyJ5QuFkVCr
    • Slide the latch for the left battery bay to the left.

  3. ZCoKtRD4nnq3KVgK
    ZCoKtRD4nnq3KVgK
    TLjMRGGGuhacnD3A
    UIAHElAWljgtQM2Y
    • Slide the latch for the right battery bay to the right and hold.

    • Continue to hold the latch while using a plastic opening tool to lift and remove the battery bay cover.

    • Remove the battery.

  4. wSoK52GKdUeROQTp
    • Loosen the two captive screws on the bottom left corner of the hard drive using a Phillips #1 screwdriver until you hear a click.

  5. CSINWcTJ3XCdxOGe
    CSINWcTJ3XCdxOGe
    rPhV5r5gmhCrka3A
    • Lift the hard drive cover using a non-marring iFixit opening tool.

    • This will expose the hard drive.

  6. MIombvRf3kOWCIra
    MIombvRf3kOWCIra
    SLJPmTbTyxflKPn1
    rOCoOQwDWxpMRjNR
    • Slide the hard drive to the left using your fingers.

    • Remove the hard drive by inserting an iFixit opening tool under the right side of the hard drive and carefully lifting it out.

  7. lrJh6NFtlEgElCqg
    • Using a Phillips #1 screwdriver, turn the screw on the RAM cover until you hear a click.

    • This is a captive panel screw and remains with the cover.

  8. ijWRPLn56olfGygf
    ijWRPLn56olfGygf
    MBiG5yvdH1hPLJfv
    • Remove the RAM cover by inserting the plastic opening tool into the indent and lifting.

  9. vnTsEhKEylSDyY3V
    vnTsEhKEylSDyY3V
    MFjkdyCLCAqGNSMY
    • Push the white and silver retaining clips away from each side of the RAM card using your fingernails.

    • The RAM card should pop up at an angle.

  10. mVcSjSPdTDjVkAA4
    mVcSjSPdTDjVkAA4
    BfsYVLnytwfRlHdA
    • Pull the RAM card away from the computer.

    • Repeat Steps 6 and 7 to remove the other RAM card that may be installed.

  11. WDNTVhXFdba1Q5tg
    • Place the laptop right-side-up so the screen faces you.

  12. ya2ToiUZWBwqeIR3
    ya2ToiUZWBwqeIR3
    omSQvSVTfnCkfd6I
    LoUhZjgPh5nUmDAM
    • Remove the strip of plastic at the right furthermost edge of the keyboard using a plastic opening tool.

    • Insert the plastic opening tool at either end of the strip.

    • Lift upwards and proceed to the other end while repeating this lifting process every one to two inches.

  13. 4MDtijhvwGjSUa4G
    • CAUTION: do not allow hardware or debris into the CPU fan and duct.

    • Remove the two 3-mm screws at the top edge of the keyboard using a Phillips #00 screwdriver.

    • These are not captive panel screws and, once loosened, will be free to move about the assembly.

  14. SrZoJ4wbxBGDcDIf
    SrZoJ4wbxBGDcDIf
    mGnJdWURItcMDNoH
    • Pry the top of the keyboard loose from its casing using a plastic opening tool.

  15. doWVXbehiZFqFIMq
    • Gently grasp the top of the keyboard and pull it up and toward the screen.

    • CAUTION: Pulling too hard could damage the black ribbon cable under the keyboard.

  16. ZsFTBTJRNKfqmD6I
    ZsFTBTJRNKfqmD6I
    1UBTIk1LVHXd1KOF
    2XRclGECBmKuKqkR
    • Gently push the two tabs locking the black ribbon cable.

    • To remove the black ribbon cable from the motherboard, slide the keyboard toward the screen.

    • You may now safely separate the keyboard from the laptop.

  17. RVJUZV5NXBJlOodR
    • Place the laptop upside-down with the display hinges facing away from you.

  18. mbZaRHEVLMvUMUYj
    • For the following steps, use a Phillips #1 screwdriver.

    • Remove the twelve 6-mm screws that border the bottom of the laptop.

    • Remove the 6-mm screw located in the lower middle of the device.

    • Remove the three 3-mm screws located in the battery bay.

    • Remove the one 4-mm screw located near the RAM.

  19. fRV4TWbU1G3pSkpf
    • Place the laptop right-side-up so the screen faces you.

  20. 1Iq1ElTIqYxIeY43
    • CAUTION: do not allow hardware or debris into the CPU fan and duct.

    • Use a Phillips #1 screwdriver to remove the five 6-mm screws in the keyboard slot.

    • These are not captive panel screws and, once loosened, will be free to move about the assembly.

  21. RaqjqdySYwXH31KF
    RaqjqdySYwXH31KF
    dKXsbNeokJLSWGyn
    pMDgYKxc5HhXwHqu
    • Lock the white ribbon cable into place by gently pulling on the two black tabs.

    • Remove the white ribbon cable by pulling it towards you.

    • Remove the connector that has the blue, red, black, and white wires using tweezers.

  22. oPi5sL2HevjfolfU
    oPi5sL2HevjfolfU
    psHndWE5YK1aAE1p
    CO3rbyjOHWXVkTZD
    • Separate the laptop upper casing from the lower casing by using an opening tool around the sides of the case to pry it apart.

  23. E1PQKFPBjRa6yaQt
    • Using a Philips #1 screwdriver, remove the four 6-mm screws from the two metal tabs that connect the screen to the body.

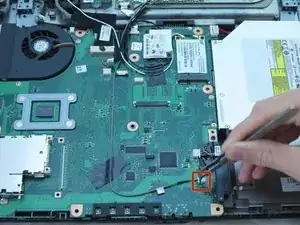

  24. VT4UgWshKVdKPRHP
    VT4UgWshKVdKPRHP
    wL1VlKB53JlYZI4j
    qBk2YeqRwOgd3mQO

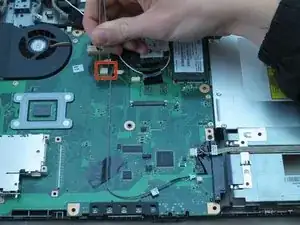

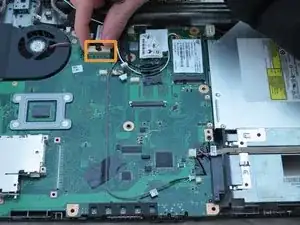

    • Using tweezers, remove two connectors: one with black and white wires and one with green, yellow, red, black, and white wires.

    • Using your fingers, remove the large connector from the top right corner of the motherboard.

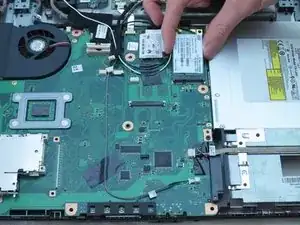

  25. EDhJlgicLQVFhUs2
    EDhJlgicLQVFhUs2
    jvQZFlsALINTjEQK

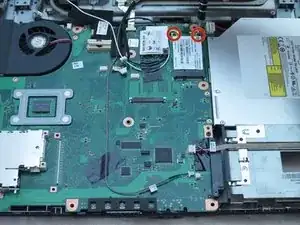

    • Using the Phillips #1 or Phillips #00 screwdriver, remove the two 3-mm screws from the card with black and white wires coming off of it.

    • Our card has one screw that required a Philips #1 and one that required a Philips #00. Start with the Philips #1 and, if it doesn't fit, use the Philips #00.

    • The card should pop up. Gently remove the card with your fingers.

  26. AMwcfgH5NoyEBxtG
    • Remove the screen using your hands and put it aside.

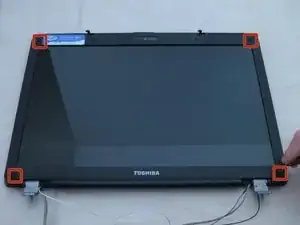

  27. rFYcrbPVZfUDTFWe
    • Using tweezers, pry the rubber feet out of the corners of the laptop.

  28. ZkdjccUFRUp4aFOu

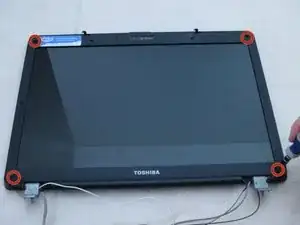

    • Using a Phillips #1 screwdriver, remove the four 4-mm screws at the corners of the screen.

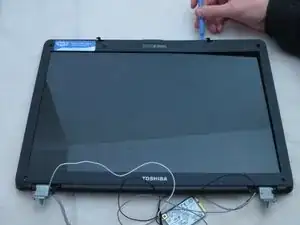

  29. 5rM1HRWCfnALsAHH
    5rM1HRWCfnALsAHH
    TqgFmmau5NiR2Fna
    dWwkgec3UNgTVwLO

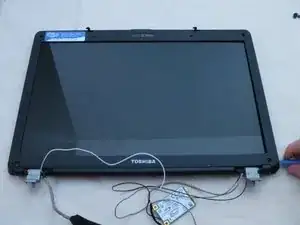

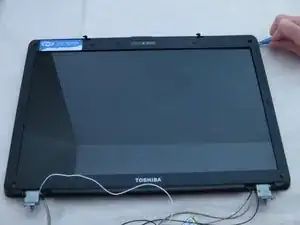

    • Using a plastic opening tool, pry off the top of the screen casing.

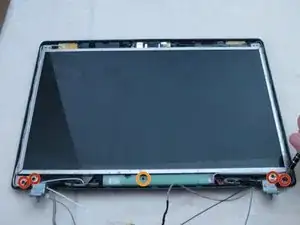

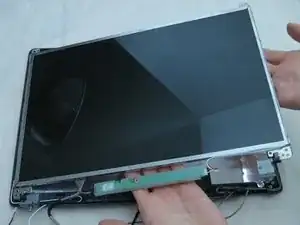

  30. 3GBIJCx5F5aMdnWI
    3GBIJCx5F5aMdnWI
    WaGJg1JdbGpYCRiF
    • Using a Phillips #1 screwdriver, remove the four 4-mm screw.

    • Using a Philips #1 screwdriver, remove the one 6-mm screw.

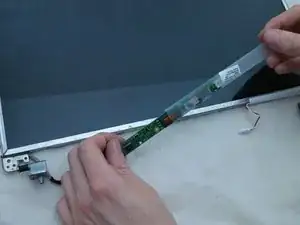

  31. EIqUIrh5QGap1UuX
    EIqUIrh5QGap1UuX
    IBY2KIoCOZJbTprc
    LRD1UNM2lfXAnR4g

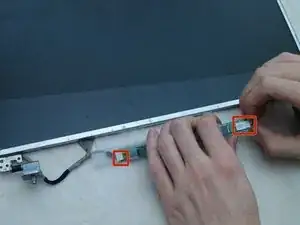

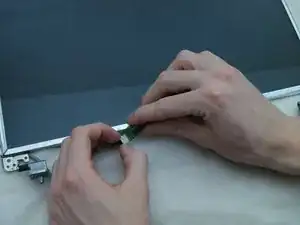

    • Using your hands, remove the small connectors from the small board attached to the bottom of the LCD screen.

    • In order to access the second connector, you will need to remove the protective plastic cover. Make sure to put this back on when installing the next screen.

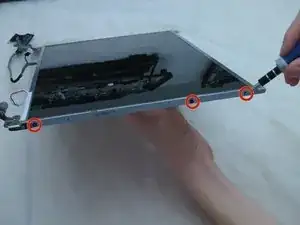

  32. YD6bVSVaUhOAMRyx
    YD6bVSVaUhOAMRyx
    dSaUbyP3Qog1gCku

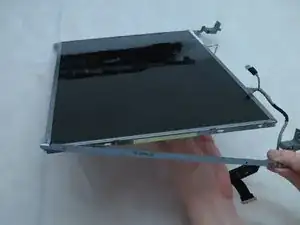

    • Using a Phillips #1 screwdriver, remove the six 3-mm screws from the sides of the screen. There should be three on each side.

    • Using your hands, remove the two metal strips the screws were holding.

Abschluss

To reassemble your device, follow these instructions in reverse order.
