Einleitung

  1. QqLIeiyo3kmKr4fv

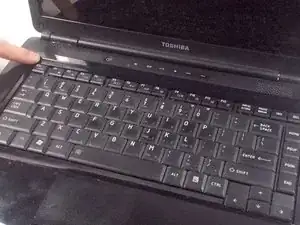

    • Locate at the top of the key board a long thin plastic cover that extends from above the Del key to the top of the Esc button.

  2. mUnIB2IYUD5fLmIR
    mUnIB2IYUD5fLmIR
    iGOAQn1j6ELiWngs

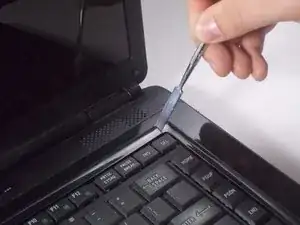

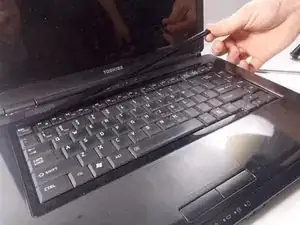

    • Pry up this plastic cover using the Spudger, and carefully remove the plastic cover from the laptop.

  3. UBfZeGq5QQwCaiYf
    UBfZeGq5QQwCaiYf
    GdBZPBSE6FWdYnRU

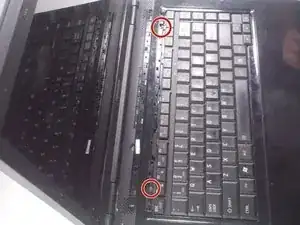

    • After putting the plastic cover to the side, locate the two screws holding the keyboard to the laptop.

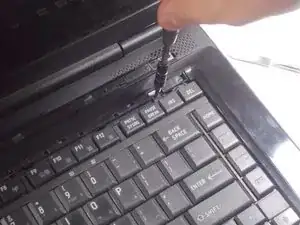

    • Remove the screws using the Phillips #0 screwdriver, and place the screws on the magnetic board.

  4. xjE1x6wflYAWISRA

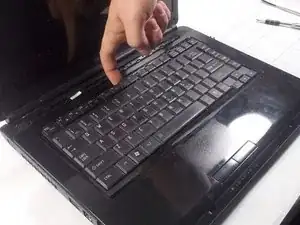

    • Lift the keyboard up in order to remove the cable.

  5. oU1rRPiuARJiw1Oq
    oU1rRPiuARJiw1Oq
    VWm1q6dLBYgxWXTn
    LeVmE4eZSnqMZJwH

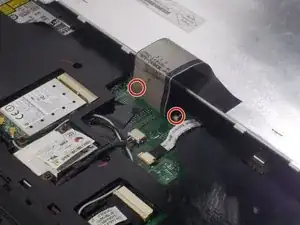

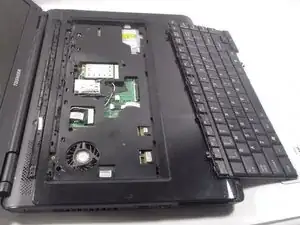

    • Notice the two white tabs on the compartment holding the cable.

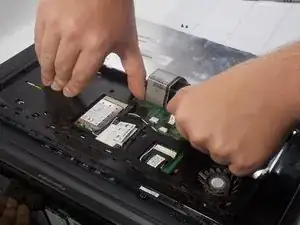

    • Carefully unplug the keyboard from the motherboard by pulling the two white tabs away from the compartment holding the wire.

Abschluss

To reassemble your device, follow these instructions in reverse order.
