Toshiba Satellite L305D-S5950 CD Drive Replacement

Geschrieben von: William
  • Kommentare: 0
Toshiba Satellite L305D-S5950 CD Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

4 - 5 Minuten

Einleitung

  1. rsZfbiTU5bFnIpvD

    • Locate the two sliding battery locks on the underside of the laptop.

  2. DVVaPQIxyEOZ4RJX
    DVVaPQIxyEOZ4RJX
    mnsBlg2g1VoGZY1G

    • Locate the right battery lock and slide it to the right.

  3. UqnScxCURSIdGJKW
    UqnScxCURSIdGJKW
    wMsbyZYHSIGnemOg

    • While holding the left battery lock to the left, lift up the battery using the tab located on the top center of the battery.

  4. UY14jbjiRACLwbWk

    • Remove the battery from the laptop.

  5. eLfoQhTy4lSjB2ab

    • Locate the RAM cover on the underside of the laptop.

  6. nfLmjBNyVMwJYOsy

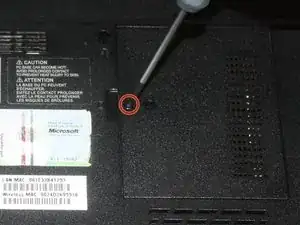

    • Use a phillips head #0 screwdriver to remove the screw located on the RAM cover.

  7. YpNaMSAlmrqAHoeQ
    YpNaMSAlmrqAHoeQ
    VVqPkNIhHEikCNBL

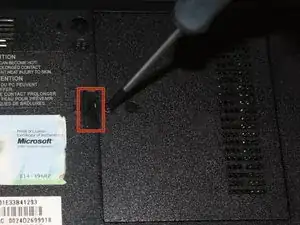

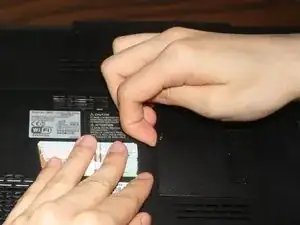

    • Using your fingers, carefully remove the cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
