Toshiba Satellite L305D-S5950 Keyboard Replacement

Geschrieben von: William
  • Kommentare: 1
Toshiba Satellite L305D-S5950 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. rsZfbiTU5bFnIpvD

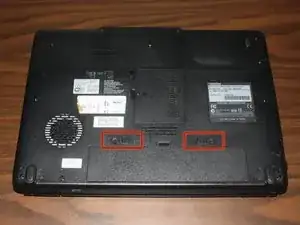

    • Locate the two sliding battery locks on the underside of the laptop.

  2. DVVaPQIxyEOZ4RJX
    DVVaPQIxyEOZ4RJX
    mnsBlg2g1VoGZY1G

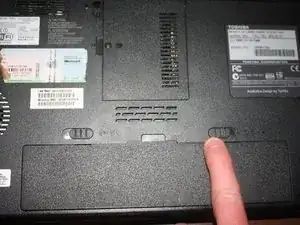

    • Locate the right battery lock and slide it to the right.

  3. UqnScxCURSIdGJKW
    UqnScxCURSIdGJKW
    wMsbyZYHSIGnemOg

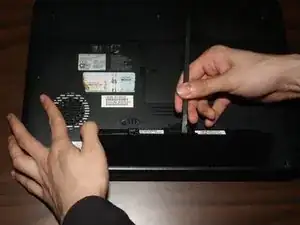

    • While holding the left battery lock to the left, lift up the battery using the tab located on the top center of the battery.

  4. UY14jbjiRACLwbWk

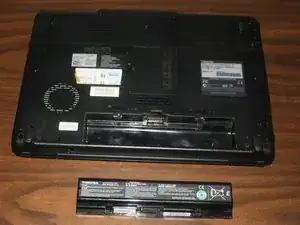

    • Remove the battery from the laptop.

  5. FVCtYWGXny2E1s1V
    FVCtYWGXny2E1s1V
    TINinKaTQvX6aBBA

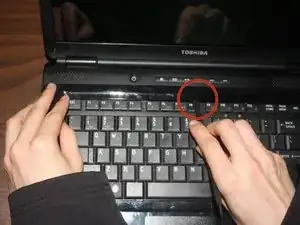

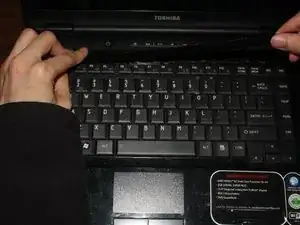

    • Locate the plastic strip at the top of the keyboard.

    • Use a pry tool to remove the plastic strip.

    • Using your hands pull out the rest of the plastic strip.

  6. SuJOopFVPPxaOmwh

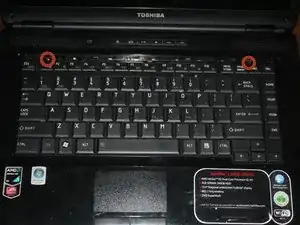

    • Use a phillips head #0 screwdriver to remove the two 3.75mm screws holding the keyboard in place.

  7. S2FjgLFYOvRiARfU
    S2FjgLFYOvRiARfU
    qSZoAcXlfLvQeuDG
    NBKTQEkV2drjGM6d

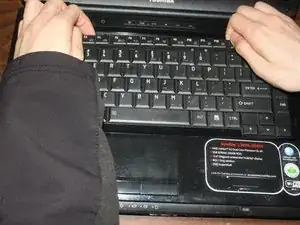

    • Lift up the top of the keyboard to remove it.

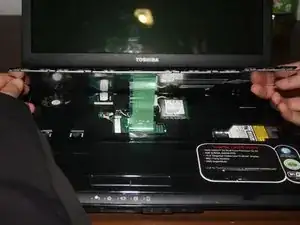

    • Under the keyboard there is a ribbon cable connecting the keyboard to the laptop. Do not just quickly pull out the keyboard.

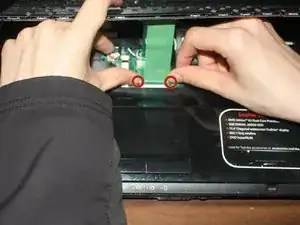

    • Unlock the ribbon cable by pushing on the locks that are located on both sides of ribbon cable.

    • Unplug the ribbon cable from the laptop.

  8. T2HvnPmIjts2E1qZ

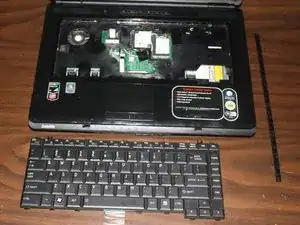

    • Remove the keyboard completely from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
