Einleitung

In order to replace the speakers on your device the keyboard and motherboard cover need to be removed first.

  1. rsZfbiTU5bFnIpvD
    • Locate the two sliding battery locks on the underside of the laptop.

  2. DVVaPQIxyEOZ4RJX
    DVVaPQIxyEOZ4RJX
    mnsBlg2g1VoGZY1G
    • Locate the right battery lock and slide it to the right.

  3. UqnScxCURSIdGJKW
    UqnScxCURSIdGJKW
    wMsbyZYHSIGnemOg
    • While holding the left battery lock to the left, lift up the battery using the tab located on the top center of the battery.

  4. UY14jbjiRACLwbWk
    • Remove the battery from the laptop.

  5. FVCtYWGXny2E1s1V
    FVCtYWGXny2E1s1V
    TINinKaTQvX6aBBA
    • Locate the plastic strip at the top of the keyboard.

    • Use a pry tool to remove the plastic strip.

    • Using your hands pull out the rest of the plastic strip.

  6. SuJOopFVPPxaOmwh
    • Use a phillips head #0 screwdriver to remove the two 3.75mm screws holding the keyboard in place.

  7. S2FjgLFYOvRiARfU
    S2FjgLFYOvRiARfU
    qSZoAcXlfLvQeuDG
    NBKTQEkV2drjGM6d
    • Lift up the top of the keyboard to remove it.

    • Under the keyboard there is a ribbon cable connecting the keyboard to the laptop. Do not just quickly pull out the keyboard.

    • Unlock the ribbon cable by pushing on the locks that are located on both sides of ribbon cable.

    • Unplug the ribbon cable from the laptop.

  8. T2HvnPmIjts2E1qZ
    • Remove the keyboard completely from the laptop.

  9. HhJyLaCWFTdDwPhS
    HhJyLaCWFTdDwPhS
    5GjXkV5CpNNOVixY

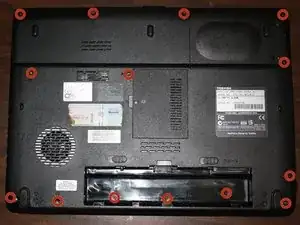

    • Remove all 6.75mm screws from the bottom of the laptop. The 3 screws under the battery are 3.75mm.

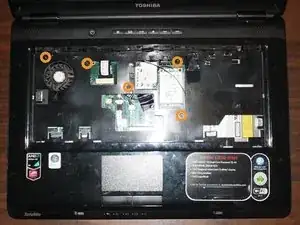

    • Remove all 5.25mm screws from the top of the laptop.

  10. ZEXxD34GgIfyWK4N
    ZEXxD34GgIfyWK4N
    yNLdTH6QDvWAvba6
    CrLdnIRn6b2RvVUp

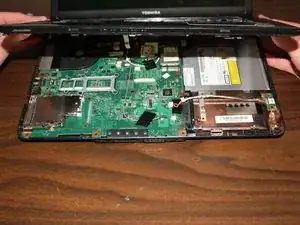

    • Unplug the wires highlighted with red squares.

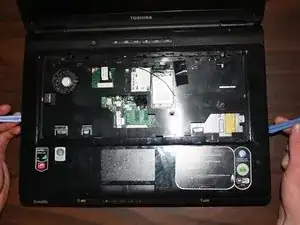

    • Using a pry tool and yours hands to remove the motherboard cover.

  11. 5WEnweELsvGiRi1T
    5WEnweELsvGiRi1T
    xxX4NFL4BwsINFDr

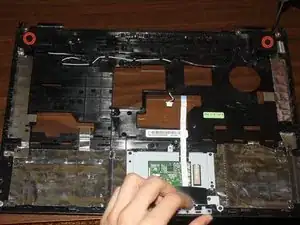

    • Use a phillips head #00 screwdriver to remove the two 5.25mm screws.

  12. eAHKRBDRcISPoTRU
    eAHKRBDRcISPoTRU
    iJDXo3eJUierx26q

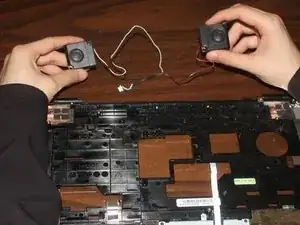

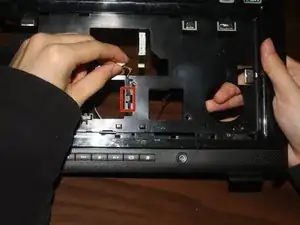

    • Turn the keyboard housing over and disconnect the speaker power wire from the keyboard housing.

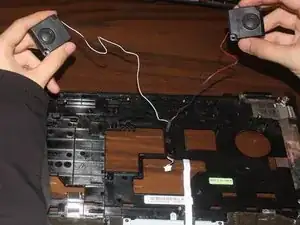

    • Remove both speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
