Toshiba Satellite L35-S2174 Hard Drive Replacement

Geschrieben von: Amani Mitchell
  • Kommentare: 0
Toshiba Satellite L35-S2174 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 4 Minuten

Einleitung

The hard drive is the memory center of your computer. It stores all of your information and files and allows you able to access that data. Replacing the hard drive can speed up your computer and improve the hard drive storage space.

  1. gkAEmBCVLxVboGs2

    • Turn the laptop off to prevent the possibility of electric shock or damage to the computer.

    • Flip the laptop so that the bottom is facing upwards.

  2. fHfNKmhICXZq3Mey
    fHfNKmhICXZq3Mey
    vRfDP4ZCDuvPMvvp

    • Slide the battery lock switch to the left.

  3. lrL2UaEVVp6cEkiR
    lrL2UaEVVp6cEkiR
    nYEdCFOYduvqJWVX

    • Pull the sliding switch to the right and continue to hold it in this position.

  4. eOamw5ETSR3QbheW

    • While holding the switch, slide the battery away from you.

    • You do not need to hold the switch when putting the battery back into the laptop.

  5. NLaCYS5NSfd4Yh3i
    NLaCYS5NSfd4Yh3i
    GNT1O6WXqwBdkdkC
    UAr3R2IKMYHAIIPq

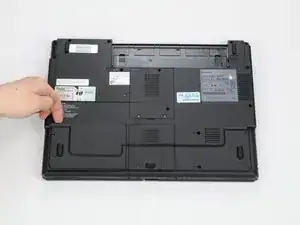

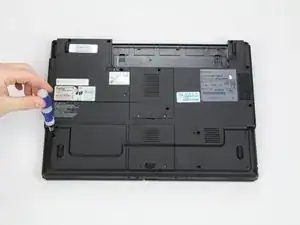

    • Use a J1 screwdriver to unscrew the two circled screws. The screws will remain attached to the plastic panel.

    • Lift the panel and remove it from the laptop.

  6. O1m6Vl2E1KgmObgJ
    O1m6Vl2E1KgmObgJ
    xT1vHoobMucRiRLs

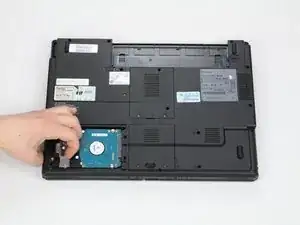

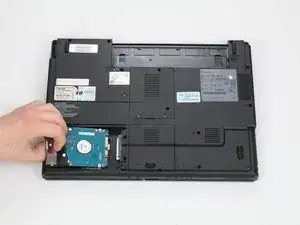

    • Slide the hard drive to the left to detach it from the computer.

    • Lift the hard drive from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
