Toshiba Satellite L35-S2174 Keyboard Replacement

Geschrieben von: Amani Mitchell
  • Kommentare: 0
Toshiba Satellite L35-S2174 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

2 - 7 Minuten

Einleitung

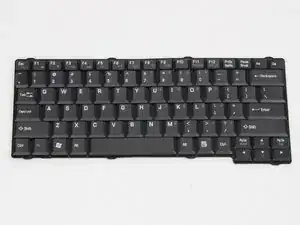

The keyboard allows you to control your computer. If the keyboard isn't working, it jmay cause many problems with computer interactions. Replacing the keyboard can fix keyboard-related mechanical problems.

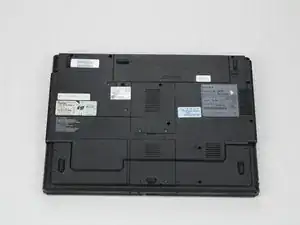

  1. gkAEmBCVLxVboGs2

    • Turn the laptop off to prevent the possibility of electric shock or damage to the computer.

    • Flip the laptop so that the bottom is facing upwards.

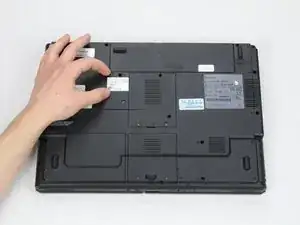

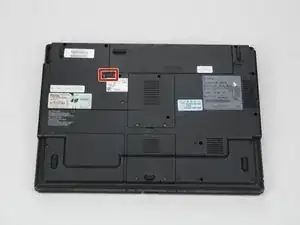

  2. fHfNKmhICXZq3Mey
    fHfNKmhICXZq3Mey
    vRfDP4ZCDuvPMvvp

    • Slide the battery lock switch to the left.

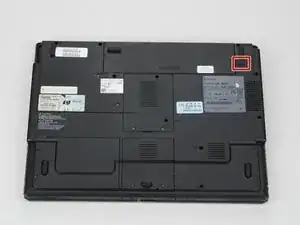

  3. lrL2UaEVVp6cEkiR
    lrL2UaEVVp6cEkiR

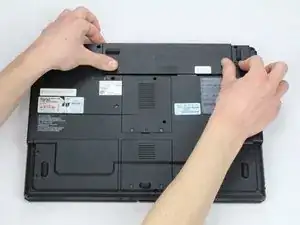

    nYEdCFOYduvqJWVX

    • Pull the sliding switch to the right and continue to hold it in this position.

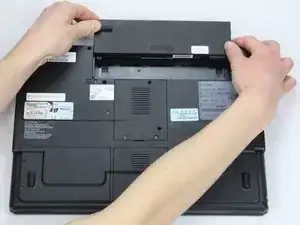

  4. eOamw5ETSR3QbheW

    • While holding the switch, slide the battery away from you.

    • You do not need to hold the switch when putting the battery back into the laptop.

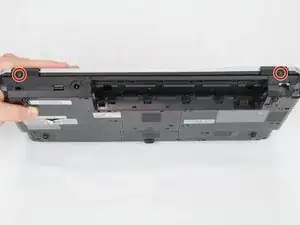

  5. hmJA1EBeXiGHuVU2
    hmJA1EBeXiGHuVU2

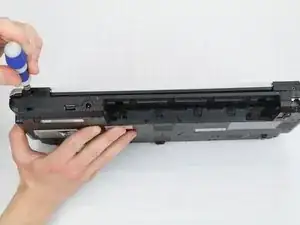

    AZaPm5hvQWCi43rr

    • Remove the two circled 4mm screws with a J1 screwdriver.

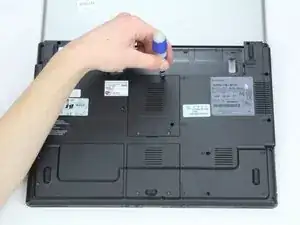

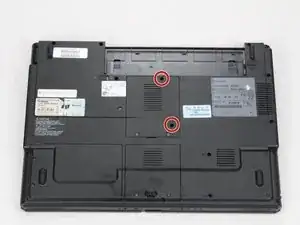

  6. SmJYVdTuOKJIpeP5
    SmJYVdTuOKJIpeP5
    Lpn5Inm1IcPpZx4n

    • Remove the two circled 5mm screws with a J1 screwdriver.

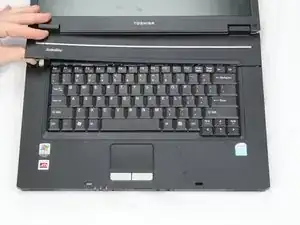

  7. IRYGfXjR5VIwN6sL
    IRYGfXjR5VIwN6sL
    HqUaZDU2JxvVn6Bg

    • Use a spudger to pry up the plastic panel between the keyboard the screen.

    • Repeat on opposite side of laptop.

    • The panel may be difficult to remove.

    • Tilt the laptop's screen back.

    • Lift the panel and remove it from the laptop.

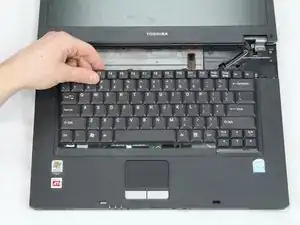

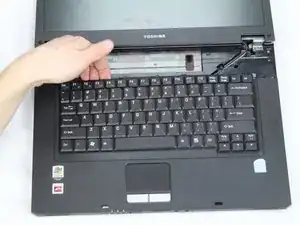

  8. wamQg2JFmi3sCQ2G
    wamQg2JFmi3sCQ2G
    oy4UrV46DjYInWCt

    • There is a ribbon cable underneath the keyboard. Don't lift the keyboard too forcefully or you may break the ribbon cable.

    • Unclip the keyboard from the laptop by lifting it.

    • Slide the keyboard slightly towards the screen.

    • Lift the keyboard out of the way.

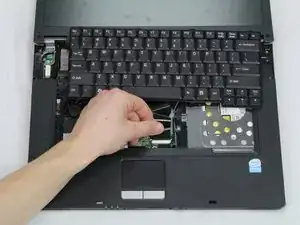

  9. HcJX31shAh2F3fnf

    • Pull the ribbon cable straight out of the connector.

    • To reinstall the cable, hold it near the end and push it straight into the connector, being careful not to kink the cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
