Toshiba Satellite L35-S2174 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 4 Minuten

Einleitung

Problems with your RAM can keep the computer from starting properly. Replacing your laptop's RAM can help with memory problems, or improve speed and functionality.

  1. gkAEmBCVLxVboGs2

    • Turn the laptop off to prevent the possibility of electric shock or damage to the computer.

    • Flip the laptop so that the bottom is facing upwards.

  2. fHfNKmhICXZq3Mey
    fHfNKmhICXZq3Mey
    vRfDP4ZCDuvPMvvp

    • Slide the battery lock switch to the left.

  3. lrL2UaEVVp6cEkiR
    lrL2UaEVVp6cEkiR
    nYEdCFOYduvqJWVX

    • Pull the sliding switch to the right and continue to hold it in this position.

  4. eOamw5ETSR3QbheW

    • While holding the switch, slide the battery away from you.

    • You do not need to hold the switch when putting the battery back into the laptop.

  5. kTn6dRMttfVBcVFB
    kTn6dRMttfVBcVFB
    COcfu3AfXd46dZeD
    JjDwqQWyFohCHidf

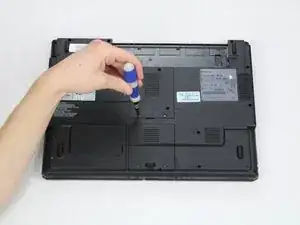

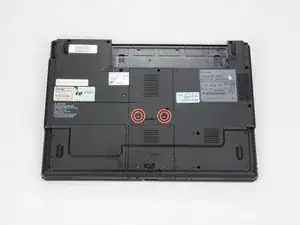

    • Unscrew the two circled screws with a J1 screwdriver. The screws will remain attached to the panel.

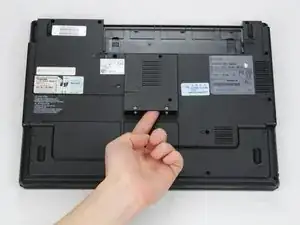

    • Lift the panel and remove it from the laptop.

  6. Jdr1WtwsdcudyuBl
    Jdr1WtwsdcudyuBl
    x5csIXGeQQPxijy5
    DFEYCDog5royZGWM

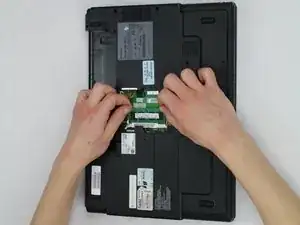

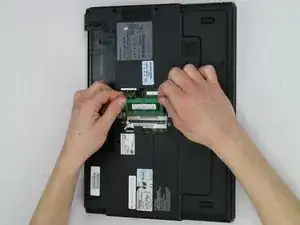

    • Pull the flaps apart on either side of the RAM chip. It will pop upwards.

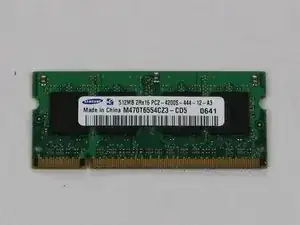

    • Carefully lift the RAM chip out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
