Toshiba Satellite L40-A Fan Assembly Replacement

Geschrieben von: Emiliano Hernandez
  • Kommentare: 0
Toshiba Satellite L40-A Fan Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

2 - 5 Minuten

Einleitung

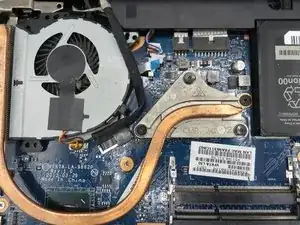

A guide to replacing a Toshiba L40-A CPU fan.

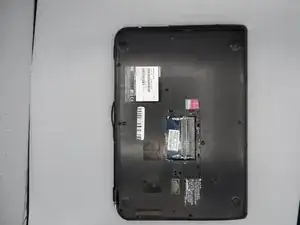

  1. CXEPBqXCx15VSgPh

    • Flip open the laptop to access the back panel.

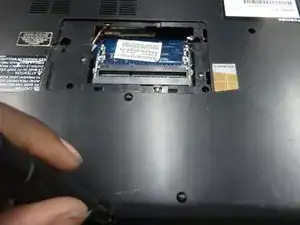

  2. ZFlDuJIJqmcMkCch

    • Use a Philips #0 screwdriver to unscrew the back panel.

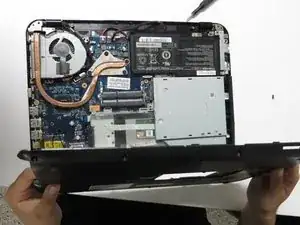

  3. 2PjYtVsuas2xt4wt

    • Use an opening tool to remove the back panel from the laptop.

  4. p4irkHYTuv2MhWDF

    • Disconnect the wire connecting the fan assembly.

  5. rYRBdrGGtDG1CMSv

    • Unscrew the screws on located on the edges of the fan.

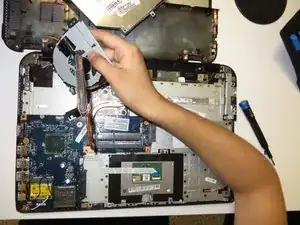

  6. GuwoCCa6ZPxRGDGO

    • Carefully lift the fan out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
