Toshiba Satellite L45-S7423 Dial Up Modem Replacement

Geschrieben von: Stephen Sippel
  • Kommentare: 1
Toshiba Satellite L45-S7423 Dial Up Modem Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

The dial up modem allows the user to connect to the internet through a wired connection if a wireless source is not available. This guide shows to the user how to replace the dial up modem if it is not functioning properly.

  1. 6PvUPOJHQIYAYUfL
    6PvUPOJHQIYAYUfL
    yoZEVkKjxVJCDQBl
    LVIwIUaeQqSgEQxQ

    • Make sure the battery lock switch is switched to the unlocked position.

    • The battery is unlocked when the battery lock switch is slid to the side with an image of an unlocked lock.

  2. THHqDxNA6MXFkTwi
    THHqDxNA6MXFkTwi
    vwNqrMfSEBV5ITIL

    • Slide the battery release switch to the left.

    • The switch is spring loaded, so you must hold the switch in place while removing the battery.

  3. XPvCrG255Cx3wDUL
    XPvCrG255Cx3wDUL
    mirIw4JqnSe4HREv

    • Using a finger, lift up the battery.

    • The battery release switch must be held in place.

  4. vhB2ppFrdljktxZN
    vhB2ppFrdljktxZN
    ROPlWSLOXxojZq22
    MJluuxRcVOfuGi1C

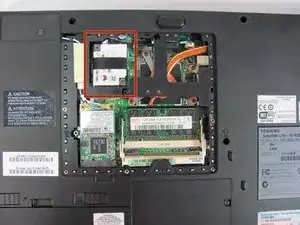

    • Remove the 5 Phillips screws holding the panel in place.

    • These screws are permanently fastened to the panel; they are designed to be removed only partially to avoid loss.

  5. TiMZSHtsZNpMoWXw
    TiMZSHtsZNpMoWXw
    vmkoTkUDbr11AcHY
    jrlORZLG55iHBncA

    • Use a finger to remove the panel by lifting up on the provided removal tab.

  6. SPOmFXSLPWWJKmnD
    SPOmFXSLPWWJKmnD
    NO6kHKkBIhWLuUnh

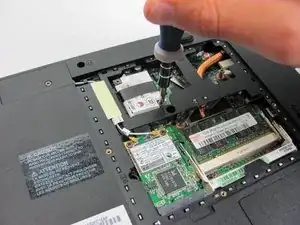

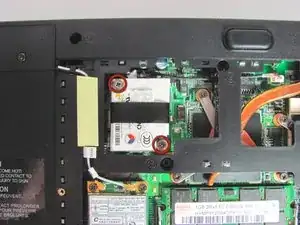

    • Remove the two screws holding modem in place.

    • Two 3.6 mm Phillips screws.

  7. qskB4vEIOZZLlIVt
    qskB4vEIOZZLlIVt
    a4kTbsOuxRKUAltv

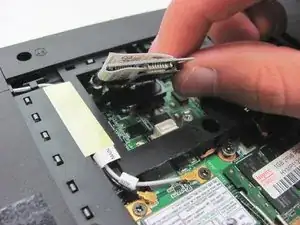

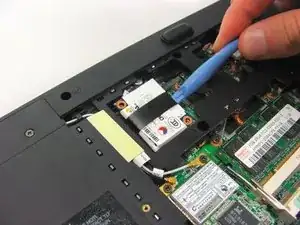

    • Using a plastic removal tool, dislodge the modem. This separates a small connections on the underside of the modem.

  8. iLi3GW4mACmIHWjT
    iLi3GW4mACmIHWjT
    CFgSxIGrScxJmItw
    T3cQ6hiMVAtUtmXC

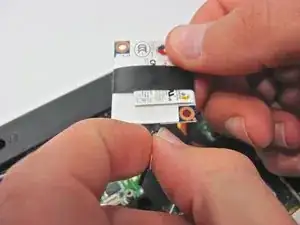

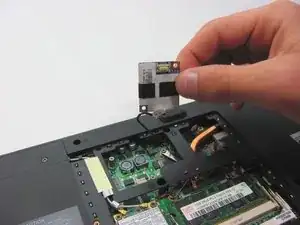

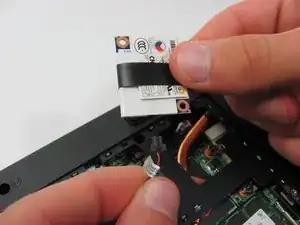

    • Grab the black insert connected to the modem. Gently pull the insert outwards to disconnect the cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
