Toshiba Satellite L45-S7423 LCD Display Replacement

Geschrieben von: Stephen Sippel
  • Kommentare: 0
Toshiba Satellite L45-S7423 LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

15 - 20 Minuten

Einleitung

The LCD display can be easily separated from the laptop body to allow for replacement if it is damaged or functioning improperly.

  1. 6PvUPOJHQIYAYUfL
    6PvUPOJHQIYAYUfL
    yoZEVkKjxVJCDQBl
    LVIwIUaeQqSgEQxQ

    • Make sure the battery lock switch is switched to the unlocked position.

    • The battery is unlocked when the battery lock switch is slid to the side with an image of an unlocked lock.

  2. THHqDxNA6MXFkTwi
    THHqDxNA6MXFkTwi
    vwNqrMfSEBV5ITIL

    • Slide the battery release switch to the left.

    • The switch is spring loaded, so you must hold the switch in place while removing the battery.

  3. XPvCrG255Cx3wDUL
    XPvCrG255Cx3wDUL
    mirIw4JqnSe4HREv

    • Using a finger, lift up the battery.

    • The battery release switch must be held in place.

  4. vhB2ppFrdljktxZN
    vhB2ppFrdljktxZN
    ROPlWSLOXxojZq22
    MJluuxRcVOfuGi1C

    • Remove the 5 Phillips screws holding the panel in place.

    • These screws are permanently fastened to the panel; they are designed to be removed only partially to avoid loss.

  5. TiMZSHtsZNpMoWXw
    TiMZSHtsZNpMoWXw
    vmkoTkUDbr11AcHY
    jrlORZLG55iHBncA

    • Use a finger to remove the panel by lifting up on the provided removal tab.

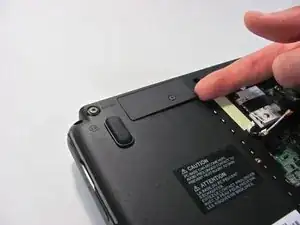

  6. bMaqSpno6AKtw3bO
    bMaqSpno6AKtw3bO
    hZ4W4rAgOMYCAdCq
    EKjBgTuk5PXJBIti

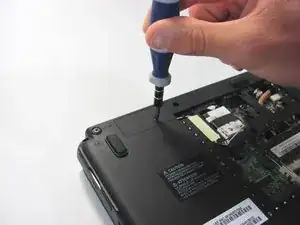

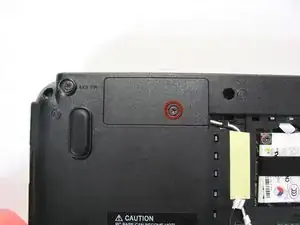

    • Remove the Phillips screw holding the panel in place and then use a finger to remove the panel.

    • This screw is not designed to be completely removed, it is permanently fastened to the panel to avoid loss.

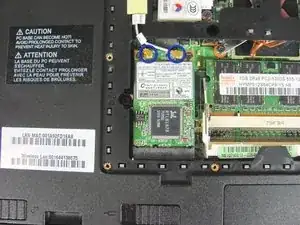

  7. PQ4rptP1Y6RYPFR3
    PQ4rptP1Y6RYPFR3
    ILOkxiAGA3rKluGN
    UmQdPvGIrBEXeo1e

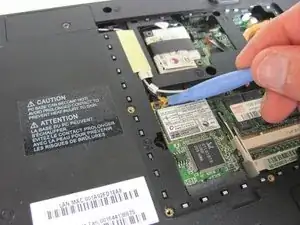

    • With the aid of a plastic removal, disconnect the two wires attached to the wireless card.

  8. P1IqN12nFUwrjBUo

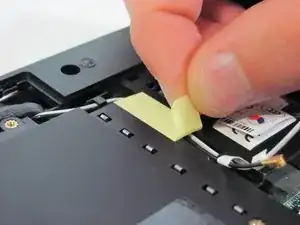

    • Remove the yellow tape holding the black and the white wires in place.

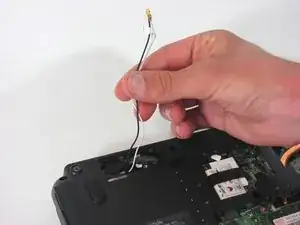

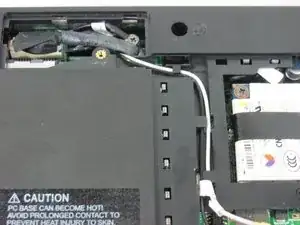

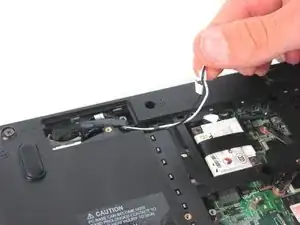

  9. Uqj1lQSYiJIwtZlH
    Uqj1lQSYiJIwtZlH
    g3HHnLxnDET2UefL
    4DBhE4XeZuKX6kCy

    • Unwind the wires from the plastic tabs holding the wires in place.

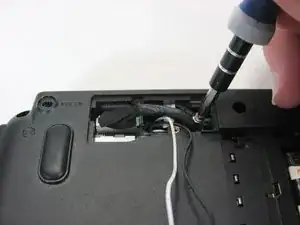

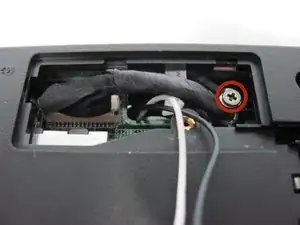

  10. UesPCoBO4uSG6ikN
    UesPCoBO4uSG6ikN
    CFGcxNMCVWURCZdR

    • Remove the screw holding the ground cable in place.

    • One 4.5 mm Phillips screw.

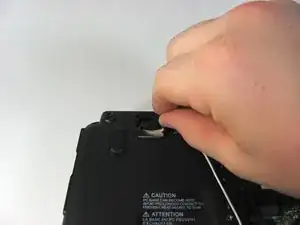

  11. HYEpuuljpseqnBJH
    HYEpuuljpseqnBJH
    1olteIwtMRoPNrZK

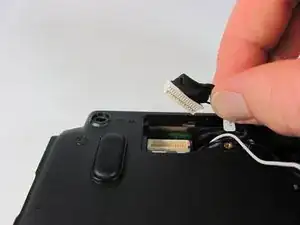

    • Disconnect the video cable connecting the display to the base of the laptop.

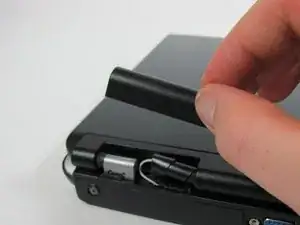

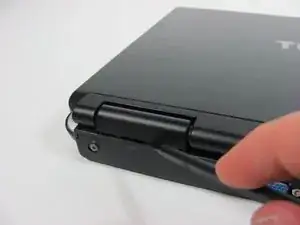

  12. CtAuQ6NynDZvLMi3
    CtAuQ6NynDZvLMi3
    4OQRIcNxKL4aTOd1
    SFNfDWFYMD5OAXIE

    • Pop off the laptop's hinge covers using a spudger tool.

    • Only a small amount of force is required. Excessive force may permanently damage the hinge covers.

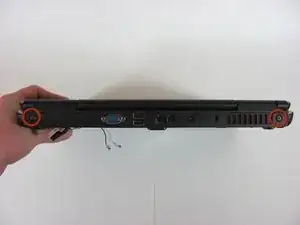

  13. NQMMV6Yxm3G6I1Zg
    NQMMV6Yxm3G6I1Zg
    cLmSkSgdqmjPGWfM

    • Remove the two screws on the back side of the laptop holding the LCD display in place.

    • Two 8.5 mm Phillips screws.

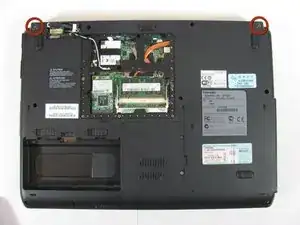

  14. mIXvwbDCnLYTaFvf
    mIXvwbDCnLYTaFvf
    vad6RH1rnIc5fTCU

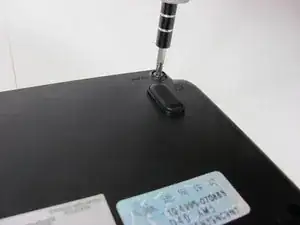

    • Remove the final two screws on the bottom side of the laptop holding the LCD display in place.

    • Two 8.5 mm Phillips screws.

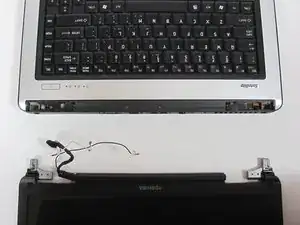

  15. 5ggdCTdMpajbNkJ2
    5ggdCTdMpajbNkJ2
    Yi1RCEQLBICli1IW
    n1vVZFNZdKxI1FUl

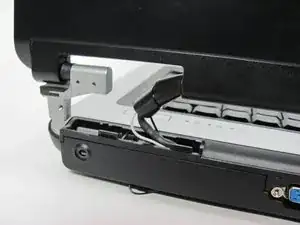

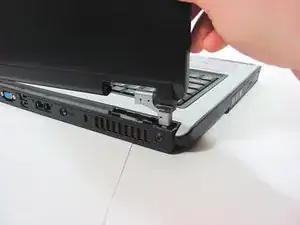

    • Carefully pull apart the LCD display from the base by pulling vertically upwards on the display.

    • Be careful as you remove the display not to pull too hard on the cables as they pass through the opening.

Abschluss

To reassemble your device, follow these instructions in reverse order.
