Toshiba Satellite L45-S7423 RAM Replacement

Geschrieben von: Stephen Sippel
  • Kommentare: 0
Toshiba Satellite L45-S7423 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will demonstrate to the user how to remove and install new RAM into their laptop. RAM is often upgraded on the laptop to increase performance and is therefore made easy to replace.

  1. 6PvUPOJHQIYAYUfL
    6PvUPOJHQIYAYUfL
    yoZEVkKjxVJCDQBl
    LVIwIUaeQqSgEQxQ

    • Make sure the battery lock switch is switched to the unlocked position.

    • The battery is unlocked when the battery lock switch is slid to the side with an image of an unlocked lock.

  2. THHqDxNA6MXFkTwi
    THHqDxNA6MXFkTwi
    vwNqrMfSEBV5ITIL

    • Slide the battery release switch to the left.

    • The switch is spring loaded, so you must hold the switch in place while removing the battery.

  3. XPvCrG255Cx3wDUL
    XPvCrG255Cx3wDUL
    mirIw4JqnSe4HREv

    • Using a finger, lift up the battery.

    • The battery release switch must be held in place.

  4. vhB2ppFrdljktxZN
    vhB2ppFrdljktxZN
    ROPlWSLOXxojZq22
    MJluuxRcVOfuGi1C

    • Remove the 5 Phillips screws holding the panel in place.

    • These screws are permanently fastened to the panel; they are designed to be removed only partially to avoid loss.

  5. TiMZSHtsZNpMoWXw
    TiMZSHtsZNpMoWXw
    vmkoTkUDbr11AcHY
    jrlORZLG55iHBncA

    • Use a finger to remove the panel by lifting up on the provided removal tab.

  6. mhFy2R1HTkd2LJhv
    mhFy2R1HTkd2LJhv
    2FVtWbjlmqveKfbb
    pq2Jy1YyqBSuj2Rs

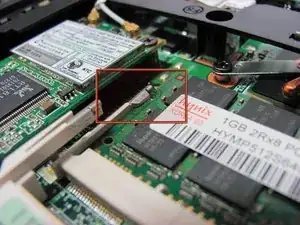

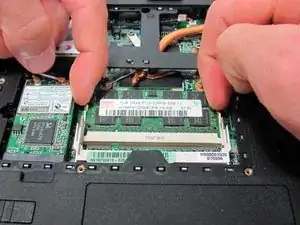

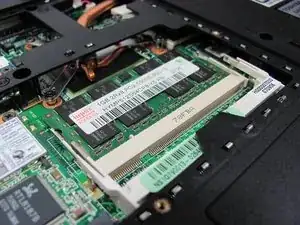

    • Pull apart the two tabs holding the RAM in place.

  7. TNYJplsWqvETwQYF

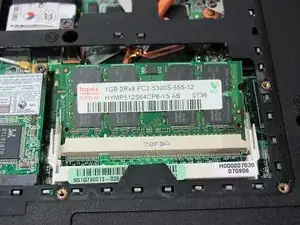

    • Upon release, RAM will automatically pop up.

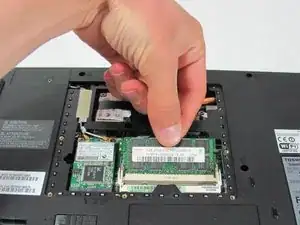

  8. 1jCxGo15dInYatDS
    1jCxGo15dInYatDS
    R2TSOpkbBjZFZ3rK
    6W56TIZIAED1RAty

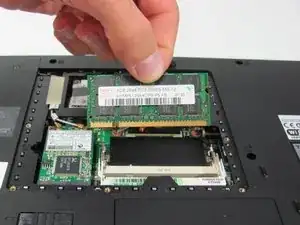

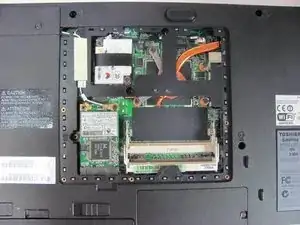

    • Gently pull on RAM to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
