Toshiba Satellite L45-S7423 Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 - 10 Minuten

Einleitung

The wireless card allows the user to wirelessly connect to the internet if WiFi is available. If you are experiencing trouble with your wireless connection, replacement of your wireless card may be necessary. Following the this guide will allow you to easily replace your wireless card.

  1. 6PvUPOJHQIYAYUfL
    6PvUPOJHQIYAYUfL
    yoZEVkKjxVJCDQBl
    LVIwIUaeQqSgEQxQ

    • Make sure the battery lock switch is switched to the unlocked position.

    • The battery is unlocked when the battery lock switch is slid to the side with an image of an unlocked lock.

  2. THHqDxNA6MXFkTwi
    THHqDxNA6MXFkTwi
    vwNqrMfSEBV5ITIL

    • Slide the battery release switch to the left.

    • The switch is spring loaded, so you must hold the switch in place while removing the battery.

  3. XPvCrG255Cx3wDUL
    XPvCrG255Cx3wDUL
    mirIw4JqnSe4HREv

    • Using a finger, lift up the battery.

    • The battery release switch must be held in place.

  4. vhB2ppFrdljktxZN
    vhB2ppFrdljktxZN
    ROPlWSLOXxojZq22
    MJluuxRcVOfuGi1C

    • Remove the 5 Phillips screws holding the panel in place.

    • These screws are permanently fastened to the panel; they are designed to be removed only partially to avoid loss.

  5. TiMZSHtsZNpMoWXw
    TiMZSHtsZNpMoWXw
    vmkoTkUDbr11AcHY
    jrlORZLG55iHBncA

    • Use a finger to remove the panel by lifting up on the provided removal tab.

  6. 4jP2MJdOkORVfVwj
    4jP2MJdOkORVfVwj
    hHKKccCamTd2KLS1
    cOyO6FrZEgYNNO2a

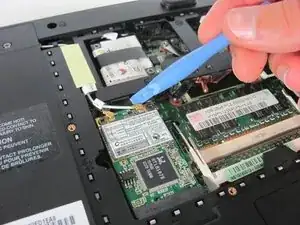

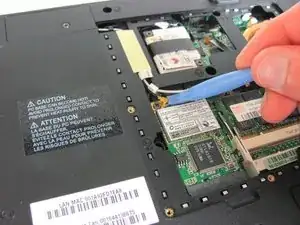

    • Remove the black and the white antenna wires attached to the wireless card.

    • Using a plastic removal tool, gently pop the connections apart.

  7. opcKNtarwDSYmmUe
    opcKNtarwDSYmmUe
    JOKS3ucwIvuRrnlu

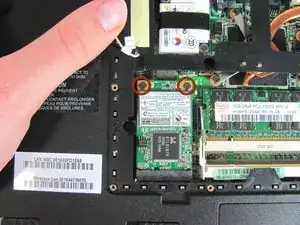

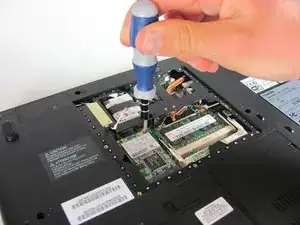

    • Remove the screws holding the wireless card in place.

    • Two 3.6 mm Phillips screws.

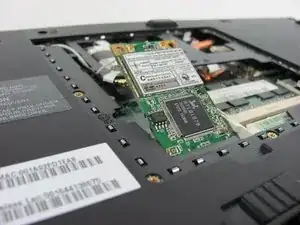

  8. FuK5IkqABAgTHi1b

    • The wireless card will automatically pop up allowing for easy removal.

  9. 1VwvFqrLMgrarkRx
    1VwvFqrLMgrarkRx
    QBaE5ovSPV2GnlKv

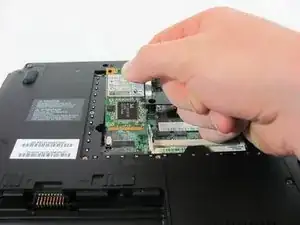

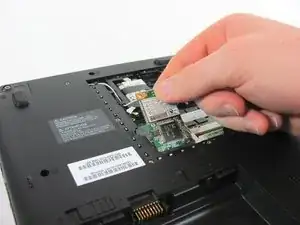

    • Pull to remove the wireless card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
