In this guide we will teach you how to replace the fan on your laptop. Be sure to read the Satellite L455-S5046 Troubleshooting Guide to see if a replacement is necessary.
Werkzeuge
-
-

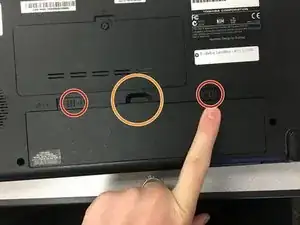

Find the battery on the back of the computer. Slide both tabs outward towards the side of the laptop and the battery will come loose.
-
Insert your finger under the middle tab and lift the battery out.
-
-
-

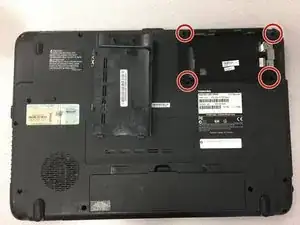

Start on the back and unscrew the 12 Phillips #0 11-mm screws holding the back cover down.
-
-
-
Flip the laptop over. Remove the keyboard as instructed in the keyboard replacement guide.
-

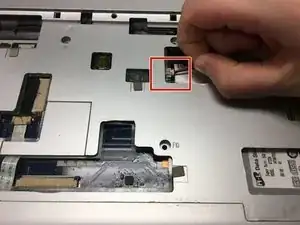

Gently remove the connector visible in the upper right hand corner of the laptop by pulling to the right.
-

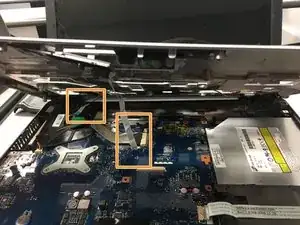

Remove the cover slowly. There will be two other connectors on the underside that can be removed by pulling gently.
-
-
-

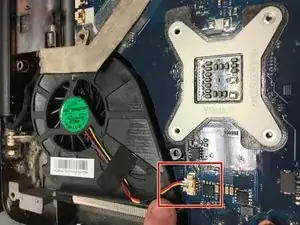

Remove the connector between the fan and the laptop by pulling gently to the left.
-

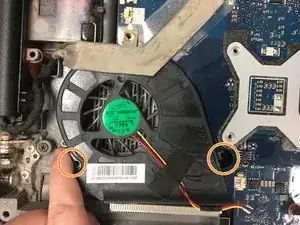

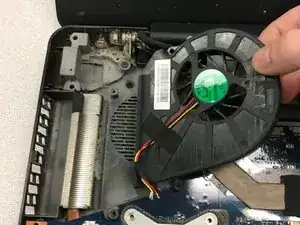

Remove the two indicated 11-mm Phillips #0 screws.
-
To reassemble your device, follow these instructions in reverse order.
