This guide is useful for replacing a broken LCD screen on your laptop. If you are reading this from a laptop, you are looking at an LCD screen. In this replacement guide, you will remove the old LCD panel and install a new one.

Note: Before starting any removal or installation, remember to turn off the device and to remove it from the power source.

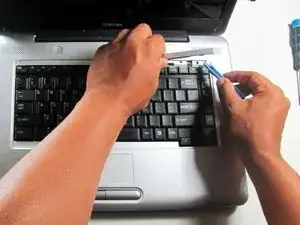

  1. asYQH3I4QLK1LNOU
    asYQH3I4QLK1LNOU
    DVSlULoPtXHr4wao
    • Before repairing your laptop, power down the system, disconnect the charger if necessary and remove the battery.

    • Use the flat edge of the plastic opening tool to pry open the narrow plastic strip above the keyboard.

  2. ZYL1MMAgLZR4FSi6

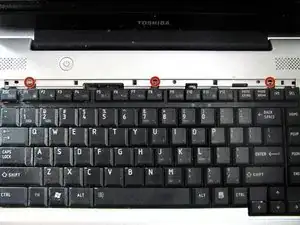

    • Remove the three 3mm screws with a Phillips#00 Screwdriver.

  3. CQarp4QwqQStwEyP

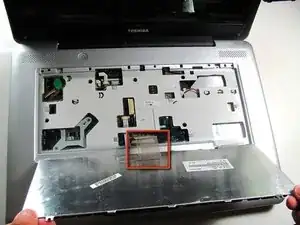

    • Lift the keyboard away from the top side of the laptop.

    • Do not pull the keyboard away too hard. It is still connected by the fragile ribbon cable (shown in the red square).

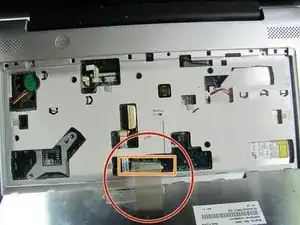

  4. Z1xpurKTMsvoMxXZ
    Z1xpurKTMsvoMxXZ
    FoCwZS5iYNhY4sNB

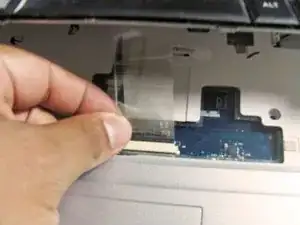

    • Disconnect the keyboard cable that is still attached to the keyboard.

    • Unlatch the fastener.

    • Using your hands, pull the keyboard connector out, not up.

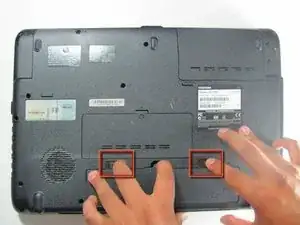

  5. 6oTmuNIxYaK2QCOG
    6oTmuNIxYaK2QCOG
    hmTHuFCaXuTuvTJE
    • Flip the laptop over to access the battery.

    • Remove the battery by sliding fingers away from each other and lifting up the tab at the same time.

  6. ScBsIijMbJsCCjLE

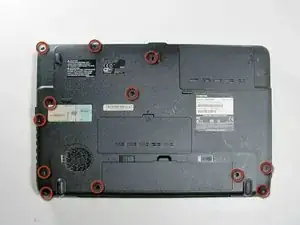

    • Remove the twelve 10mm screws with a Phillips #00 screwdriver.

    • Remove the cover over the hard drive (upper right in photo) and remove the four 10mm screws at the four corners.

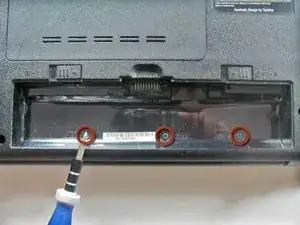

  7. xpegxAWKeae66mtj
    • Remove the three 4mm screws with a Phillips #00 screwdriver.

  8. UoiWJwaShtWbOGgu

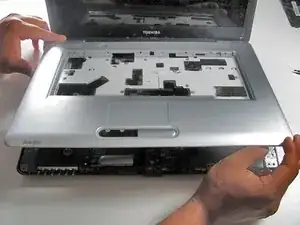

    • Flip the laptop over so it's in the right-side-up position.

    • Lift the grey plastic casing up and unhook any wires attached to the casing.

    • Remove the five 10mm screws, each with a label 'F10' next to them.

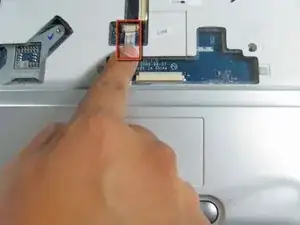

  9. LDtCbfL1REnS1Yqy
    LDtCbfL1REnS1Yqy
    fIUeFgFbgrWyQa3x

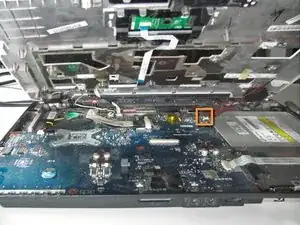

    • Disconnect the flat thin wire connecting the track pad to the motherboard by pulling it straight out.

    • Disconnect the thin red wire on the right side of the motherboard.

  10. nQTuqiiNwBIof4oD
    • Remove the two 6mm screws with a Phillips #00 screwdriver.

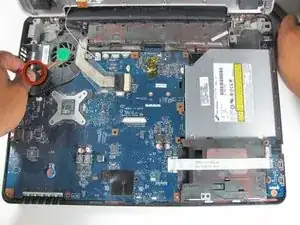

  11. JWmGbQUXlTnBuaj6
    JWmGbQUXlTnBuaj6
    2YXiyD1sYKNpXy1N

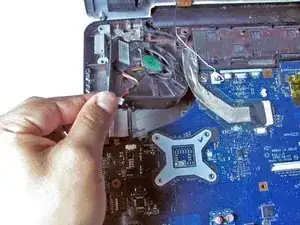

    • Disconnect the red and yellow wires connecting the fan to the motherboard by pulling the wires straight out.

    • Remove the fan.

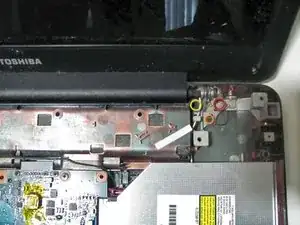

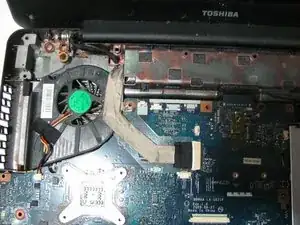

  12. c6ow4NyZAyJWZHQ6
    c6ow4NyZAyJWZHQ6
    fADwivk1JW3VSu2Q
    • Remove the following six screws located at the base of the monitor:

    • Three 5mm Phillip Head Screws

    • Two 6mm Phillip Head Screws

    • One 7mm Phillip Head Screw

    • Disconnect the long thing grey cable that is attached to the motherboard by pulling it out.

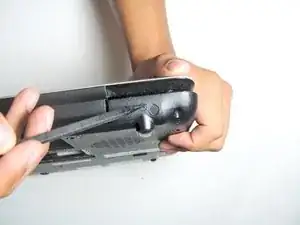

  13. TYyKGDRFTJerNYp6
    TYyKGDRFTJerNYp6
    Gevu3kILaKB2tk5Z

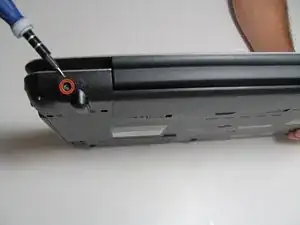

    • Remove 2 plastic plugs using a spudger located behind the corners of the rotating part of the LCD.

    • Remove two 5mm Phillips head screws located where the plugs used to be.

  14. EBPClsANVFYftW6w
    • Remove the black and white wires connected to the LCD. The wires are located under the motherboard and can be accessed through the back panel of the computer.

    • Use a spudger to remove wires by pushing the wires upward, away from the logic board.

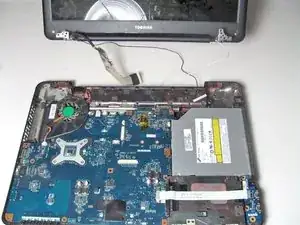

  15. bTW6g4RLGG1SNBg5
    • Remove the LCD Screen

Abschluss

To reassemble your device, follow these instructions in reverse order.
