The CPU is what makes the computer work. If it is not working properly, the computer may not turn on or work in the way in needs to. This guide will show how to replace the CPU through a series of steps.

  1. aQJLaxkvWDnZQ1bY
    • Unlock the right tab by sliding it to the right with your finger.

  2. sAXVxVCRmRdbRSWM
    • Hold the left tab to the left using your left hand.

  3. gC6gA4DbaNWw2sQd
    • Remove the battery by placing your finger in the middle groove and lifting up.

  4. 3fq3digvBIsCLrCj
    • Remove the 13 Phillips #1 10mm screws from the backside of your computer using a Phillips #1 screwdriver.

  5. deDQd4Y4UhHSR6YS
    • Remove the two Phillips #1 6mm screws from the backside of your computer using a Phillips #1 screwdriver.

  6. FdGaEpDw1sYhW1O1
    • Remove the three 3mm screws from beneath the battery with a Phillips #1 screwdriver.

  7. TWXilOIohqDNrNqL
    • Lift up the corner panel and remove it with your hand.

  8. OaWaXkPDpBE3AqtD
    • Unscrew the four Phillips #1 3mm using a Phillips #1 screwdriver.

    • Unscrew the four 10mm screws around hard drive using a Phillips #1 screwdriver.

  9. rBu1Tsa4yyMf3HpX
    rBu1Tsa4yyMf3HpX
    XxgeOwCVd5ZHUVjs
    • To remove the hard drive case, first pull the black tab to the right.

    • Then pull the black tab up to remove the case.

  10. jegbOQLw1tkc6Jyu
    jegbOQLw1tkc6Jyu
    Ogj2Olh6AFUNc6tu
    K1VYt1RJLOhqYvf4
    • Remove the plastic strip above the "F" keys using the spudger by placing the small end of the spudger under the strip and lifting up.

  11. yrfonmjGtqDO1xvj
    • Remove the two Phillips #1 3mm screws underneath the plastic strip using a Phillips #1 screwdriver.

  12. hE24IFQWUX4AxHVo
    • Lift the keyboard up and remove it with your hands.

  13. kDCgVAwvtDkPJlLp
    • Remove the five Phillips #1 10mm screws underneath the keyboard using a Phillips #1 screwdriver.

  14. teGFgomWctNI2VZ1
    teGFgomWctNI2VZ1
    FMNKEiXXGrowlJeI
    TL5kH2DWLgT6CrhS
    • Lift up the plastic panel and carefully disconnect the red and white ports.

    • Remove the panel

  15. rpJo1JNOhhNk2ZGD
    • Turn the laptop over so the bottom is facing up

    • Then remove the 3mm screw with a #1 screwdriver, located underneath the panel containing the wifi card and RAM

  16. 4xoicq5sQTwdK1LY
    • Turn the laptop back over so the motherboard is facing up

    • Now slide the optical drive out of the computer by gently pulling it to the right

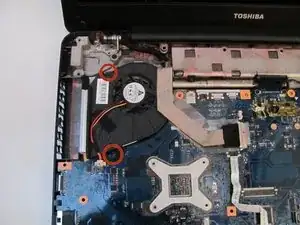

  17. sSRoOu3nT4QCpunw
    • Remove the two Phillips #1 3mm screws from the fan using a Phillips #1 screwdriver.

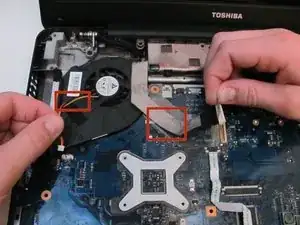

  18. nsmdR4FA4FrONwKK
    • Remove the two cables from the fan.

  19. 3CfEZgsKLa2T5det
    3CfEZgsKLa2T5det
    XJLGMn2dYoRBRWWL

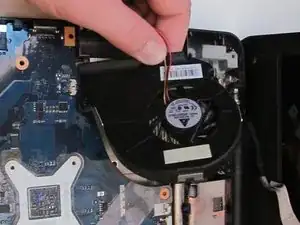

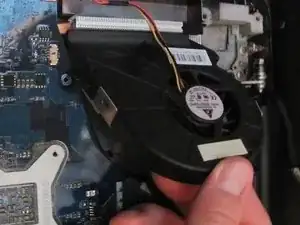

    • LIft up on the fan and remove it from the computer.

  20. pSHDdWCBKtagmo4M

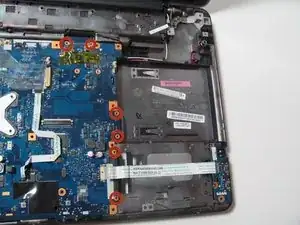

    • Remove the six 6mm screws from the motherboard with a #1 phillips screwdriver.

  21. O2fbUbLLFmAH4itr
    • Remove the lone 10mm screw from the motherboard with a phillips #1 screwdriver.

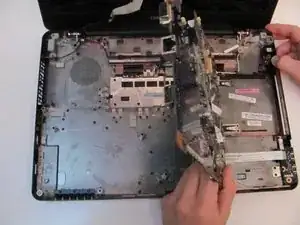

  22. MccgHcdQEMfnbRX3
    MccgHcdQEMfnbRX3
    1VJLMnakJS2nssAR

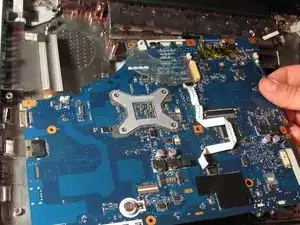

    • Remove the motherboard with your hands by carefully lifting up and pulling out.

  23. VP4aOlxbHvibXbqT
    VP4aOlxbHvibXbqT
    KNFJtTmbeTOr5hT1

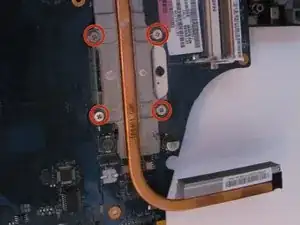

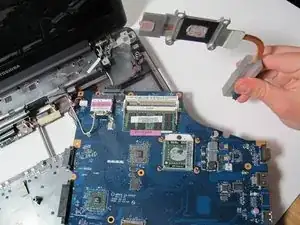

    • Remove the four Phillips #1 6mm single coil pickup screws from the cooling unit and remove the cooling unit.

  24. dew5GhIlAylYtWly
    dew5GhIlAylYtWly
    YYhFPWrGiPy32GT3

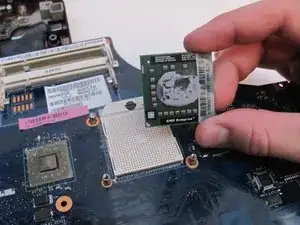

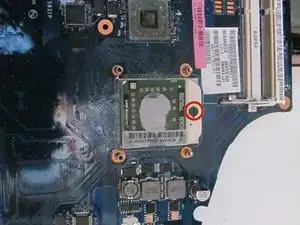

    • Using a flathead screwdriver, undo the lock on the CPU with a half turn in the counterclockwise direction.

    • Remove the CPU by lifting up on the chip.

Abschluss

To reassemble your device, follow these instructions in reverse order.
